Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
Optimizing the matching network requires careful consideration of the device's impedance, operating frequency, and surrounding components. Qorvo provides a matching network design guide in their application note AN-2172, which includes a step-by-step process for optimizing the network using simulation tools like ADS or AWR Microwave Office.
While the datasheet specifies a maximum input power of +20 dBm, the actual power handling capability of the QPD1020SR depends on the operating frequency, temperature, and other factors. Qorvo recommends consulting their application engineers or performing thorough testing to determine the maximum power handling capability for a specific application.
Proper biasing is critical for the QPD1020SR's performance and reliability. Qorvo recommends following the biasing scheme outlined in the datasheet, which includes a voltage regulator and a bias resistor. Additionally, it's essential to ensure the bias voltage is stable and well-regulated to prevent device damage or degradation.
The QPD1020SR is a high-power device that requires proper thermal management to prevent overheating and ensure reliability. Qorvo recommends using a heat sink or thermal pad, and ensuring good airflow around the device. The application note AN-2173 provides more detailed guidance on thermal management for the QPD1020SR.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPD1020SR Overview

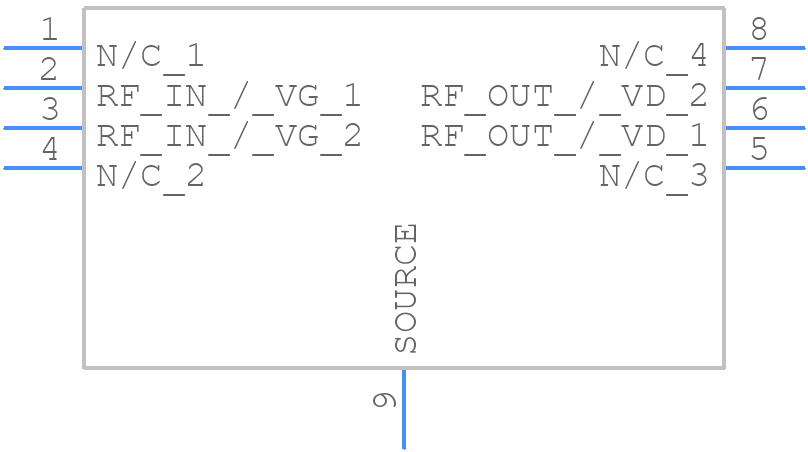

Use the download button to access the QPD1020SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10,
or try a keyword search, such as RF Power Field-Effect Transistors
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
