QPD1022SR - Qorvo

Description: DC - 12 GHz, 10 Watt, 32 V GaN RF Transistor

Download QPD1022SR Model

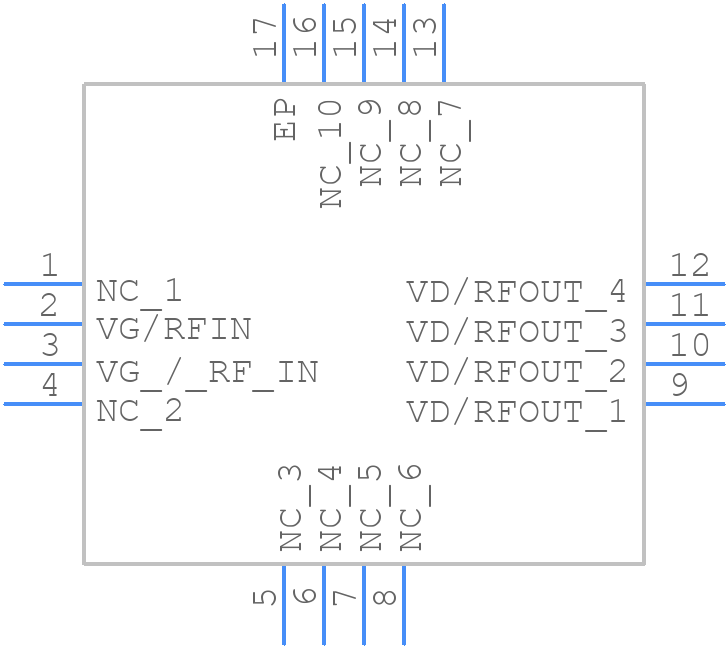

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPD1022SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Pin 3 x3 mm QFN Package16 Pin 3 x3 mm QFN
click to zoom
3D Models
QPD1022SR - Qorvo  - 3D model - Quad Flat No-Lead - 16 Pin 3 x3 mm QFN Package16 Pin 3 x3 mm QFN
click to zoom

QPD1022SR Details

  • Manufacturer Part Number:

    QPD1022SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Case Connection:

    SOURCE

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    2.4 A

  • FET Technology:

    HIGH ELECTRON MOBILITY

  • Highest Frequency Band:

    X BAND

  • JESD-30 Code:

    S-PQSO-N16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    16

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    GALLIUM NITRIDE

QPD1022SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the RF traces should be kept short and away from the digital lines.
  • Use a Smith chart to design the matching network. Start with a simple L-match or π-match topology and use simulation software to optimize the component values. The goal is to achieve a return loss of at least 15 dB at the operating frequency.
  • The QPD1022SR can handle up to 30 dBm of input power. However, the maximum power handling may be limited by the specific application and the surrounding circuitry. It's recommended to consult the datasheet and application notes for more information.
  • To reduce the noise figure, ensure that the device is properly biased and that the input and output impedances are well-matched. Additionally, use a low-noise voltage regulator and decouple the power supply lines to minimize noise injection.
  • Yes, the QPD1022SR can be used in a push-pull configuration to improve the linearity and reduce the distortion. However, this requires careful design and simulation to ensure that the devices are properly matched and biased.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD1022SR Overview

Use the download button to access the QPD1022SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
