- Part Number QPI-11LZ
- Manufacturer VICOR
- Pin Count 10
- Part Category Filter
- Package Category Other
- Footprint Name Other - QPI-11LZ-1
- Released Date May 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPI-11LZ Details
-
Manufacturer Part Number:
QPI-11LZ
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, LGA-10
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Vicor Corporation
-
YTEOL:
7
QPI-11LZ Frequently Asked Questions (FAQs)
-
Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conduction. A minimum of 2 oz copper thickness is recommended.
-
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
-
The maximum allowed input voltage ripple for the QPI-11LZ is 10% of the nominal input voltage. Exceeding this limit may affect the converter's reliability and performance.
-
The QPI-11LZ is rated for operation up to 100°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult Vicor's application notes for guidance on thermal derating.
-
Vicor recommends using an oscilloscope to monitor the input and output voltages, and checking for proper pin connections and component values. Consult Vicor's troubleshooting guide for more detailed guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
QPI-11LZ Overview

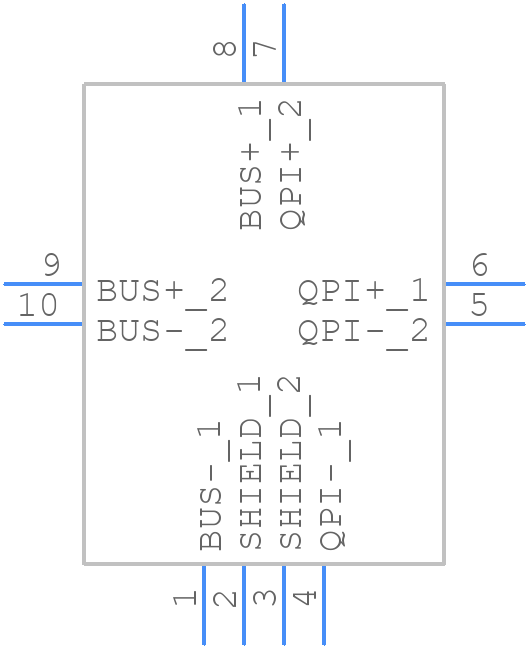

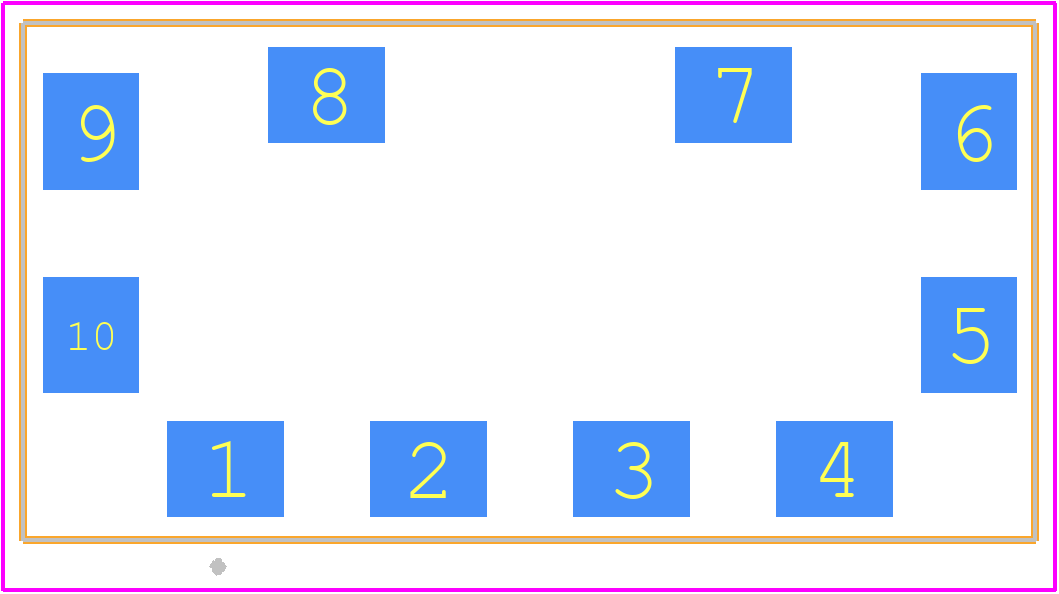

Use the download button to access the QPI-11LZ schematic symbol, PCB footprint, and 3D model.
