QPI-12LZ - VICOR

Description: EMI Filter For DC to DC Converter and Switching Regulator Module 48V 7A VI CHIP FLTR

Download QPI-12LZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

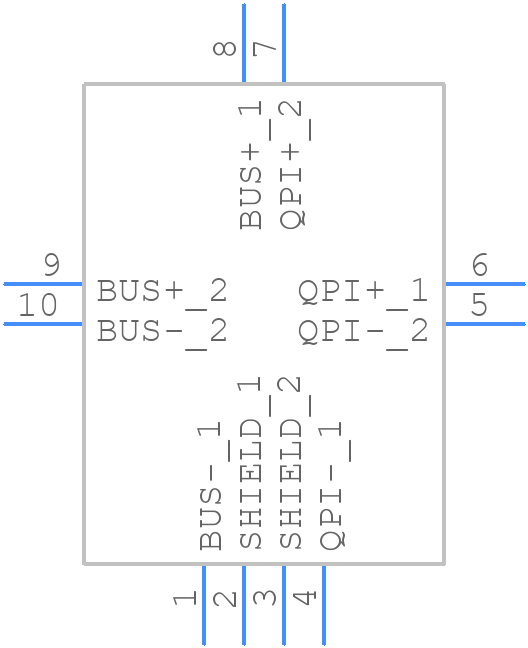

Symbol
QPI-12LZ - VICOR - PCB symbol
click to zoom

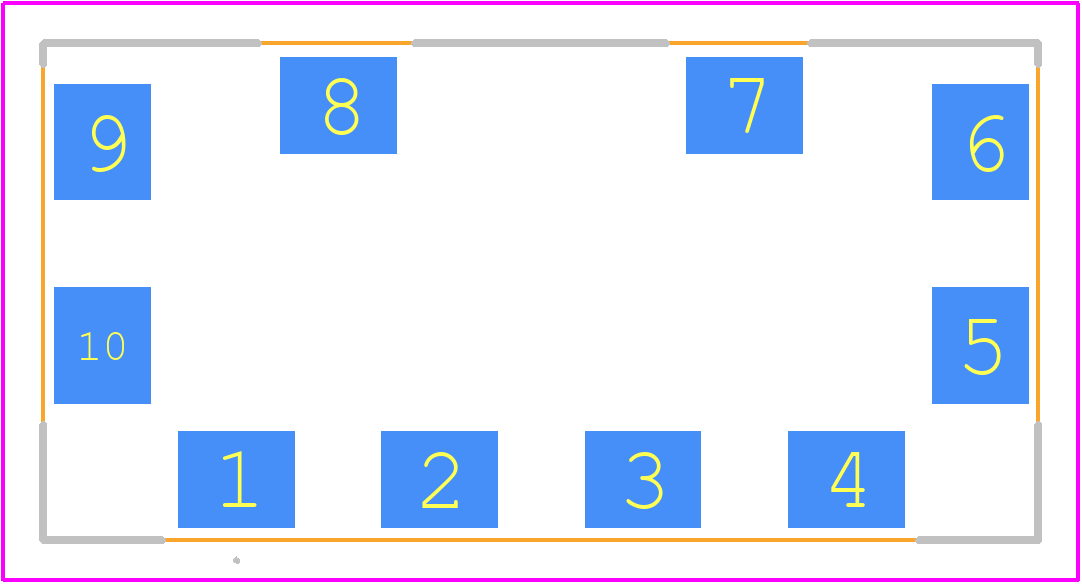

PCB Footprints
QPI-12LZ - VICOR PCB footprint - Other - Other - QPI-12 LGA
click to zoom
3D Models
QPI-12LZ - VICOR - 3D model - Other - QPI-12 LGA
click to zoom

QPI-12LZ Details

  • Manufacturer Part Number:

    QPI-12LZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, LGA-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Approvals:

    TUV

  • Attenuation Frequency-Max:

    1 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Filter Type:

    FERRITE CHIP

  • Height:

    4.5 mm

  • Length:

    25 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Rated Current:

    7 A

  • Rated Voltage:

    80 V

  • Width:

    12.4 mm

QPI-12LZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the QPI-12LZ is -40°C to +100°C, with a derated power output above 80°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring good thermal interface material (TIM) between the device and heat sink.
  • The recommended input voltage range for the QPI-12LZ is 10.2V to 13.2V, with a typical input voltage of 12V.
  • Yes, the QPI-12LZ is designed to meet the requirements of high-reliability and military applications, with options for screening and testing available.
  • Troubleshooting issues with the QPI-12LZ typically involves checking the input voltage, output voltage, and current, as well as verifying proper thermal management and correct installation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPI-12LZ Overview

Use the download button to access the QPI-12LZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPI-1, or try a keyword search, such as Data Line Filters
