- Part Number QPL1000SR
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 20 QFN___JS
- Released Date Nov 21, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL1000SR Details
-
Manufacturer Part Number:
QPL1000SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
24 Weeks
-
Date Of Intro:
2018-06-22
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
QPL1000SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The QPL1000SR requires a specific biasing scheme to operate optimally. Qorvo recommends using a voltage regulator to provide a stable 3.3V supply, and a bias resistor network to set the desired operating point. Refer to the application note AN-2171 for detailed biasing guidelines.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling capability at higher temperatures to ensure reliability. Consult the application note AN-2171 for thermal derating guidelines.
-
Qorvo provides a troubleshooting guide in their application note AN-2171, which covers common issues and their solutions, including oscillations, instability, and thermal-related problems. Additionally, Qorvo's technical support team can provide further assistance.
-
Yes, QPL1000SR is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials, to prevent damage to the device.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL1000SR Overview

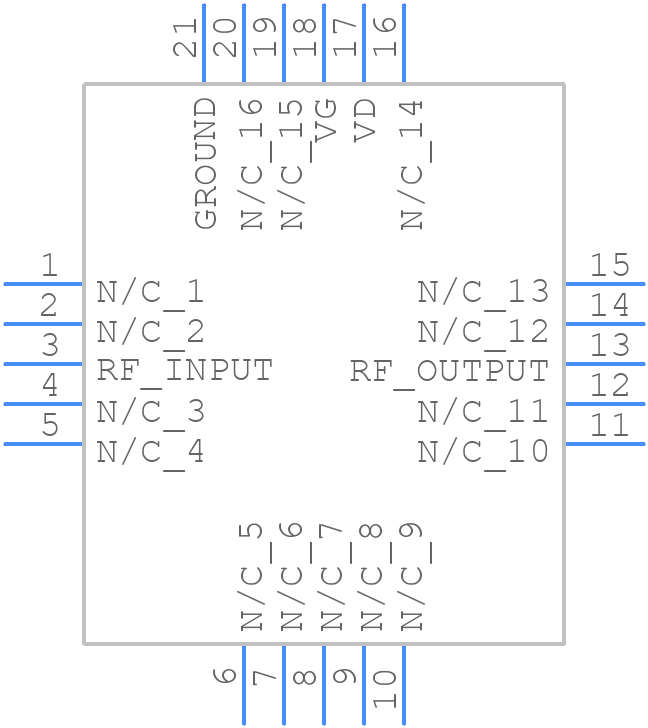

Use the download button to access the QPL1000SR schematic symbol, PCB footprint, and 3D model.
