Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The QPL1163SR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal management.
The QPL1163SR is rated for operation from -40°C to +105°C, but the device's performance may degrade at higher temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance and reliability.
The QPL1163SR requires a bias voltage of 3.3V to 5V, and the recommended bias current is 10mA to 20mA. The device should be biased through a low-pass filter or a voltage regulator to minimize noise and ensure stable operation.
The QPL1163SR has a recommended input impedance of 50 ohms and an output impedance of 50 ohms. The device should be matched to the input and output impedance of the system to ensure maximum power transfer and minimal signal reflection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL1163SR Overview

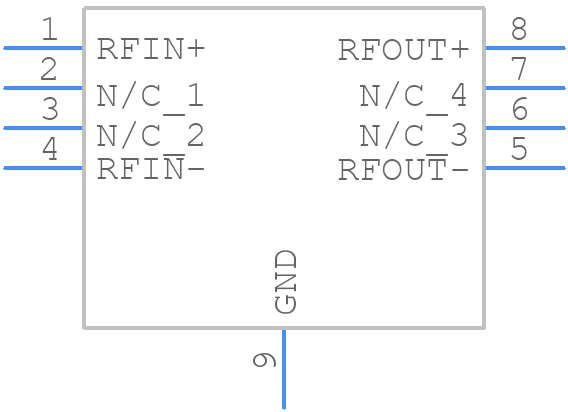

Use the download button to access the QPL1163SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL11,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
