Qorvo provides a recommended PCB layout guide for the QPL1811SR, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL1811SR has a thermal pad on the bottom of the package, which needs to be connected to a thermal ground plane on the PCB to dissipate heat efficiently. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
The input and output matching networks for QPL1811SR depend on the specific application and frequency band. Qorvo provides application notes and design guides that include recommended matching networks for various scenarios. It's essential to simulate and optimize the matching networks using tools like ADS or AWR Microwave Office to ensure optimal performance.
QPL1811SR is a rugged and reliable device, but it's still essential to follow proper handling and storage procedures to prevent damage. Ensure the device is stored in a dry, clean environment, and handle it with care to avoid mechanical stress. In harsh environments, consider using conformal coating, potting, or hermetic sealing to protect the device from moisture and contaminants.
The QPL1811SR is a sensitive device and requires proper ESD protection during handling and assembly. Use ESD-safe materials, wrist straps, and mats to prevent static discharge. Avoid touching the device's pins or exposed pads, and handle the device by the package body only. Follow the ESD handling guidelines provided by Qorvo and industry standards like ANSI/ESD S20.20.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL1811SR Overview

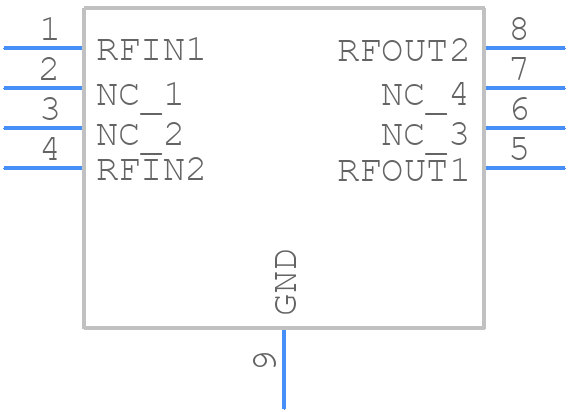

Use the download button to access the QPL1811SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL18,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
