Part Image

QPL1819TR7 - Qorvo

Description: 50 - 1800 MHz, 75 Ohm, Single-Ended, 20 dB Gain CATV Amplifier

Download QPL1819TR7 Model

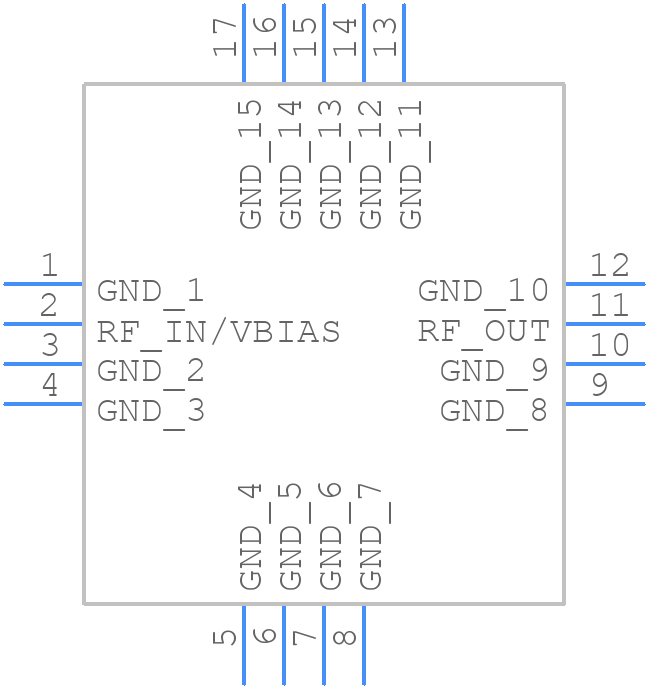

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPL1819TR7 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin QFN-ren2
click to zoom
3D Models
QPL1819TR7 - Qorvo  - 3D model - Quad Flat No-Lead - 16-pin QFN-ren2
click to zoom

QPL1819TR7 Details

  • Manufacturer Part Number:

    QPL1819TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    5A991.B

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.65

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Mounting Feature:

    PANEL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1800 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    NO

  • Technology:

    PHEMT

  • VSWR-Max:

    1.22

QPL1819TR7 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • QPL1819TR7 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal management.
  • The maximum operating temperature range for QPL1819TR7 is -40°C to 105°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To ensure the reliability of QPL1819TR7 in high-reliability applications, it's recommended to follow Qorvo's guidelines for component selection, PCB design, and manufacturing. Additionally, the device should be subjected to environmental testing, such as temperature cycling and vibration testing, to ensure its reliability in harsh environments.
  • Qorvo recommends a soldering process with a peak temperature of 260°C and a dwell time of 10-30 seconds. The device should be soldered using a Pb-free solder alloy, such as SAC305, and a nitrogen atmosphere is recommended to minimize oxidation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPL1819TR7 Overview

Use the download button to access the QPL1819TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL18, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
