QPL1820TR13 - Qorvo

Description: 5 - 1800 MHz, 22 dB Gain, 75 Ohm CATV Amplifier

Download QPL1820TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

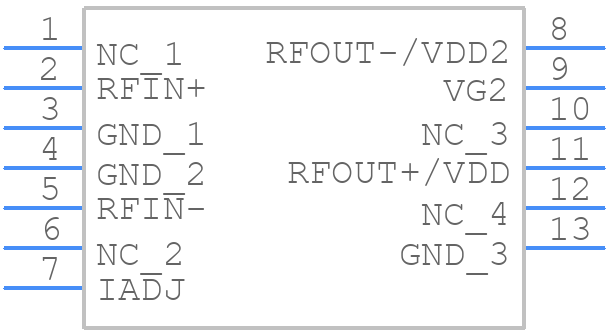

QPL1820TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL1820TR13 - Qorvo PCB footprint - Other - Other - 5 x 5 12–pin Laminate MCM_2024-3
click to zoom
3D Models
QPL1820TR13 - Qorvo - 3D model - Other - 5 x 5 12–pin Laminate MCM_2024-3
click to zoom

QPL1820TR13 Details

  • Manufacturer Part Number:

    QPL1820TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.G

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1800 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC12,.2,32

  • Power Supplies:

    5/8 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.22

QPL1820TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize parasitic effects.
  • Qorvo provides a detailed biasing and configuration guide in their application notes. Additionally, it's recommended to consult with Qorvo's technical support team or a qualified RF engineer to ensure the device is properly configured for your specific application.
  • Qorvo performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical stress testing, to ensure the device meets industry standards and customer requirements. Details of these tests can be found in Qorvo's reliability report.
  • Qorvo provides troubleshooting guides and application notes that cover common issues and faults. Additionally, it's recommended to consult with Qorvo's technical support team or a qualified RF engineer to help diagnose and resolve any issues.
  • The QPL1820TR13 is subject to various export control and regulatory compliance requirements, including ITAR and EAR regulations. It's recommended to consult with Qorvo's sales team or a qualified trade compliance expert to ensure compliance with all applicable regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPL1820TR13 Overview

Use the download button to access the QPL1820TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL18, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
