Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The QPL1821TR13 requires a specific biasing scheme to operate optimally. Qorvo recommends using a voltage regulator to provide a stable 3.3V supply, and a bias resistor network to set the desired bias current. Refer to the application note AN-2171 for detailed biasing guidelines.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's performance at temperatures above 70°C to ensure reliability and prevent thermal runaway. Consult with Qorvo's application engineers for specific guidance on high-temperature operation.
Qorvo provides a troubleshooting guide in their application note AN-2172, which covers common issues and their solutions. Additionally, Qorvo's application engineers can provide customized support for specific design challenges.
Yes, QPL1821TR13 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD precautions, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, consider incorporating ESD protection devices in the PCB design to prevent damage during operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL1821TR13 Overview

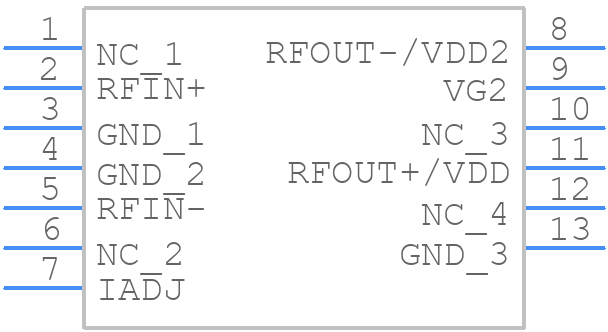

Use the download button to access the QPL1821TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL18,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
