QPL6207QTR7 - Qorvo

Description: 2.32 - 2.345 GHz SDARS Ultra Low Noise Amplifier

Download QPL6207QTR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

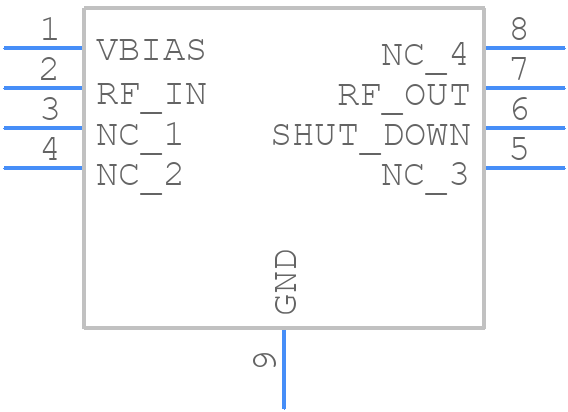

QPL6207QTR7 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL6207QTR7 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - QPL6220QTR7
click to zoom
3D Models
QPL6207QTR7 - Qorvo - 3D model - Small Outline No-lead - QPL6220QTR7
click to zoom

QPL6207QTR7 Details

  • Manufacturer Part Number:

    QPL6207QTR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    5A991.G

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-06-27

  • Manufacturer:

    Qorvo

  • YTEOL:

    1

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18.1 dB

  • Input Power-Max (CW):

    30 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2345 MHz

  • Operating Frequency-Min:

    2320 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    4.5 V

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Screening Level:

    AEC-Q100

  • Supply Current-Max:

    68 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    2.2

QPL6207QTR7 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The QPL6207QTR7 requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage-controlled current source (VCCS) biasing scheme, as described in the datasheet, to ensure proper biasing.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power dissipation above 70°C to ensure reliable operation and prevent thermal shutdown.
  • Qorvo provides a troubleshooting guide in their application note AN-2172, which covers common issues and their solutions, including oscillations, instability, and noise-related problems.
  • Qorvo recommends using a human body model (HBM) ESD protection scheme, with a minimum rating of 2 kV, to prevent damage to the device during handling and assembly.
