- Part Number QPL9058TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9058TR7
- Released Date May 7, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9058TR7 Details
-
Manufacturer Part Number:
QPL9058TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
HTS Code:
8517.62.00.90
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6.83
-
RF/Microwave Device Type:
LOW NOISE AMPLIFIER
QPL9058TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide for the QPL9058TR7, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The QPL9058TR7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
-
Qorvo provides a recommended input and output matching network for the QPL9058TR7, which includes a set of capacitors, inductors, and resistors. This network helps to optimize the device's performance, impedance matching, and power handling.
-
To troubleshoot common issues with QPL9058TR7, start by checking the PCB layout, component values, and soldering quality. Verify that the input and output matching networks are correctly implemented, and ensure that the device is properly biased and powered. If issues persist, consult Qorvo's application notes and technical support resources.
-
The QPL9058TR7 requires a specific biasing and power supply configuration to operate optimally. Qorvo recommends using a voltage regulator module (VRM) or a low-dropout regulator (LDO) to provide a stable voltage supply, and ensuring that the device is properly biased using external resistors and capacitors.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL9058TR7 Overview

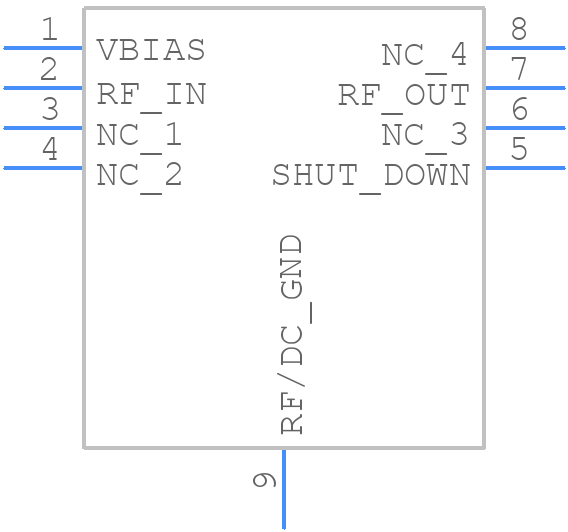

Use the download button to access the QPL9058TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL90,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
