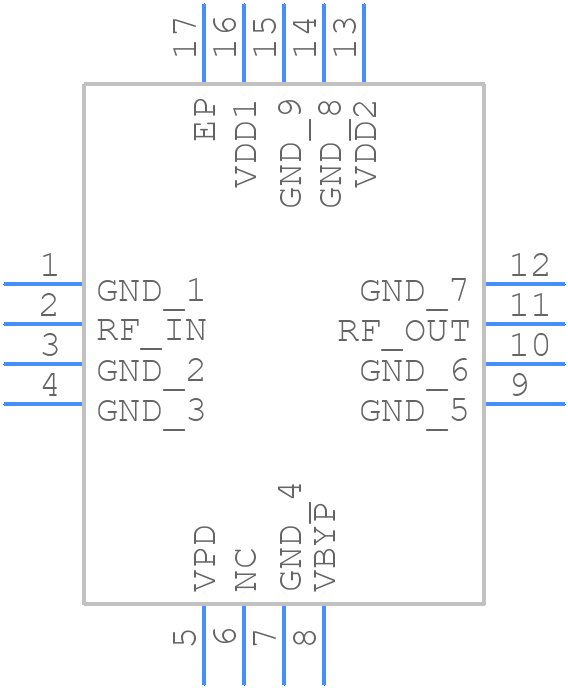

QPL9065SR - Qorvo

QPL9065SR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of QPL9065SR?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce electromagnetic interference (EMI).
• How do I optimize the matching network for QPL9065SR?
  The matching network should be optimized for maximum power transfer and minimum loss. A pi-network or a T-network can be used, and the component values should be optimized using a simulation tool or a network analyzer. The goal is to achieve a return loss of at least 10 dB at the operating frequency.
• What is the maximum operating temperature for QPL9065SR?
  The maximum operating temperature for QPL9065SR is 125°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation. A temperature derating curve is available in the datasheet.
• How do I handle the thermal management of QPL9065SR?
  A heat sink or a thermal pad should be used to dissipate heat from the device. The thermal pad should be connected to a solid ground plane to ensure good thermal conductivity. The device should be mounted on a metal core PCB or a thermal clad PCB to improve heat dissipation.
• What is the recommended input and output impedance for QPL9065SR?
  The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. The output impedance should be optimized for maximum power transfer and minimum loss.
