- Part Number QPL9095SR
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9095
- Released Date Jul 4, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9095SR Details
-
Manufacturer Part Number:
QPL9095SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active Unconfirmed
-
Manufacturer:
Qorvo
-
YTEOL:
2
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
-
Terminal Finish:
NICKEL PALLADIUM GOLD
QPL9095SR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
Use a voltage regulator to set Vdd to 3.3V. Set Vgg to 1.5V for optimal efficiency. Ensure the biasing resistors are close to the device and use a low-ESR capacitor for decoupling.
-
The maximum power handling capability of QPL9095SR is 38 dBm. Exceeding this limit may cause permanent damage to the device.
-
Check for proper thermal management, ensure good thermal conductivity between the device and the heat sink, and verify the biasing and matching networks. Use a thermal camera to detect hotspots.
-
Yes, handle the device in an ESD-controlled environment. Use an ESD wrist strap or mat, and ensure all tools and equipment are grounded. Avoid touching the device pins or exposed die.
Trust Checks
Expert Contribution
System Verified
Community Approved
QPL9095SR Overview

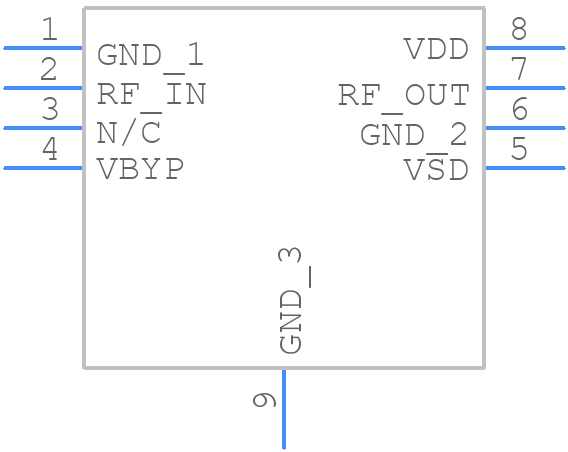

Use the download button to access the QPL9095SR schematic symbol, PCB footprint, and 3D model.
