- Part Number QPL9095TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9095
- Released Date Aug 16, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9095TR7 Details
-
Manufacturer Part Number:
QPL9095TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
QPL9095TR7 Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
-
Qorvo provides a reference design and simulation models for the QPL9095TR7. Engineers can use these resources to optimize the input and output matching networks for their specific application using simulation software such as ADS or AWR Microwave Office.
-
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering and assembly. The device should be handled and stored in an ESD-protected environment, and soldering should be done using a nitrogen reflow oven with a peak temperature of 260°C.
-
Qorvo recommends following the guidelines outlined in the QPL9095TR7 datasheet and application note for designing a shielded enclosure and implementing proper filtering and grounding techniques to minimize EMI and ensure EMC compliance.
-
The QPL9095TR7 has undergone rigorous qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, as outlined in the Qorvo reliability report. The device is also qualified to the Automotive Electronics Council (AEC) Q100 standard.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL9095TR7 Overview

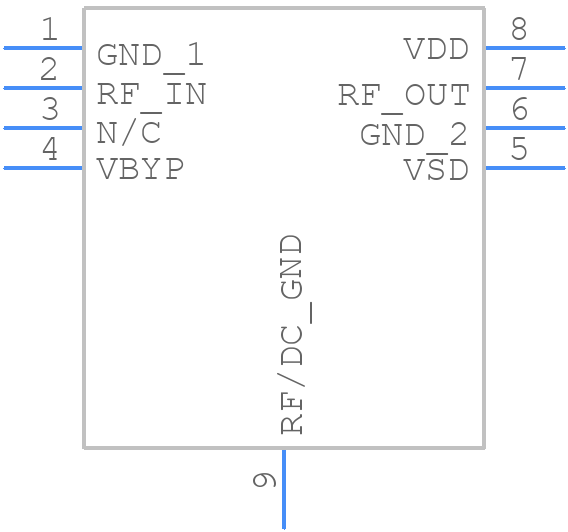

Use the download button to access the QPL9095TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL90,
or try a keyword search, such as RF/Microwave Amplifiers
