- Part Number QPL9096SR
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9096TR7
- Released Date Mar 20, 2026
- Last Modified Date Mar 20, 2026 10:11 AM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9096SR Details
-
Manufacturer Part Number:
QPL9096SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
Manufacturer:
Qorvo
-
YTEOL:
6.64
-
Additional Feature:
LOW NOISE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
23.5 dB
-
Input Power-Max (CW):
30 dBm
QPL9096SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The QPL9096SR requires a specific biasing scheme to operate optimally. Qorvo recommends using a voltage regulator to provide a stable 3.3V supply, and a bias resistor network to set the desired operating point. Refer to the application note AN-2171 for detailed biasing guidelines.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's performance at temperatures above 70°C to ensure reliability and prevent thermal shutdown.
-
Qorvo provides a troubleshooting guide in their application note AN-2172, which covers common issues, their causes, and recommended solutions. Additionally, Qorvo's technical support team can provide further assistance and guidance.
-
Yes, QPL9096SR is a sensitive device and requires proper ESD protection during handling, assembly, and testing. Qorvo recommends following standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials.
Trust Checks
Community Provided
System Verified
Community Approved
QPL9096SR Overview

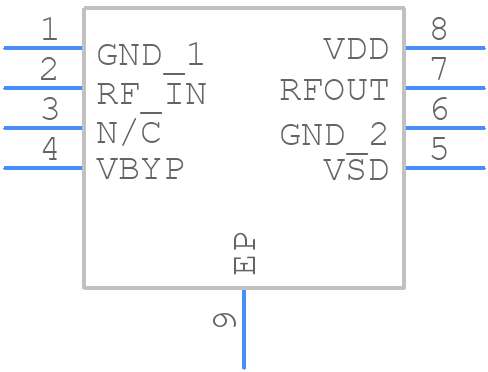

Use the download button to access the QPL9096SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL90,
or try a keyword search, such as RF/Microwave Amplifiers
