- Part Number QPL9096TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9096TR7
- Released Date Oct 1, 2020
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9096TR7 Details
-
Manufacturer Part Number:
QPL9096TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
ECCN Code:
5A991.B
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6.64
-
Additional Feature:
LOW NOISE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
QPL9096TR7 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
The device requires a 3.3V power supply and a bias current of 35mA. Ensure the voltage regulator is stable and has low noise. Use a 10uF capacitor for power supply decoupling.
-
The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
-
Use a spectrum analyzer to check the output power and frequency. Verify the input power and impedance matching. Check the device temperature and ensure proper thermal management.
-
Yes, the QPL9096TR7 can be used in a push-pull configuration to achieve higher output power. However, ensure proper impedance matching and biasing to avoid device damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL9096TR7 Overview

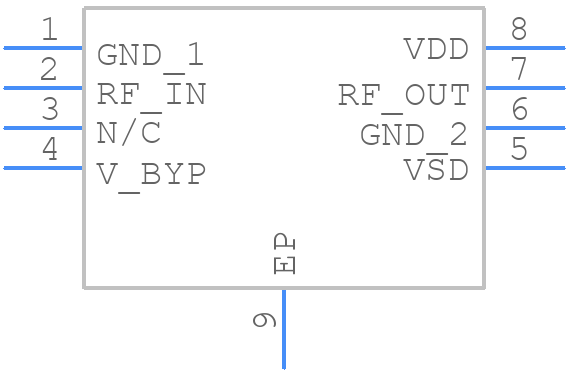

Use the download button to access the QPL9096TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL90,
or try a keyword search, such as RF/Microwave Amplifiers
