- Part Number QPL9098TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QPL9098TR7
- Released Date Nov 3, 2019
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9098TR7 Details
-
Manufacturer Part Number:
QPL9098TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
HTS Code:
8517.62.00.90
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
QPL9098TR7 Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
-
Qorvo provides a reference design and simulation models for the QPL9098TR7. Engineers can use these resources to optimize the input and output matching networks for their specific application.
-
Qorvo recommends following the standard soldering and assembly procedures for surface-mount devices, including the use of a soldering iron with a temperature of 260°C to 280°C, and a solder paste with a melting point of 217°C to 220°C.
-
Qorvo provides a recommended biasing and configuration procedure in the datasheet, including the recommended voltage and current settings for the device. Engineers should follow these guidelines to ensure optimal performance.
-
Qorvo performs a range of reliability and qualification tests on the QPL9098TR7, including temperature cycling, humidity testing, and electrical overstress testing, to ensure the device meets the required standards for reliability and performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL9098TR7 Overview

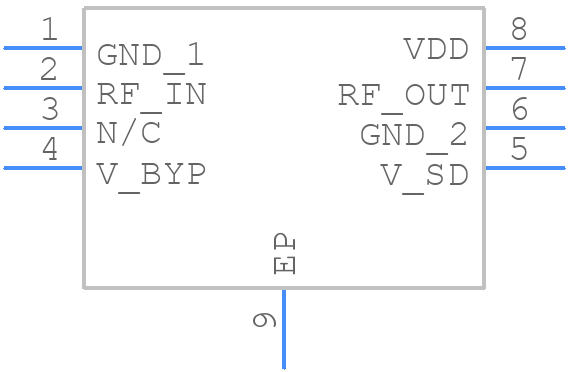

Use the download button to access the QPL9098TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL90,
or try a keyword search, such as RF/Microwave Amplifiers
