Part Image

QPL9547 - Qorvo

Description: 0.1-6 GHz Operational Bandwidth • Ultra-low noise figure, 0.3 dB NF @ 1.9 GHz • 39 dBm OIP3 • 19.5 dB small signal gain • Bias adjustable for linearity optimization • Unconditionally stable • Shut-down mode pin with 1.8V logic • Maintains OFF state with high Pin drive

Download QPL9547 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

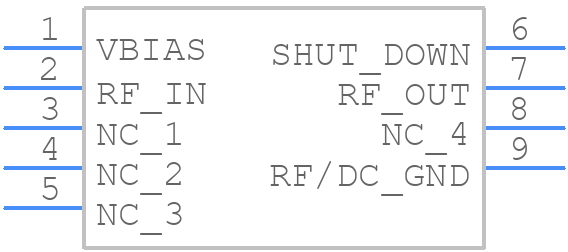

Symbol
QPL9547 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL9547 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Pin 2X2 mm DFN
click to zoom
3D Models
QPL9547 - Qorvo - 3D model - Small Outline No-lead - 8 Pin 2X2 mm DFN
click to zoom

QPL9547 Details

  • Manufacturer Part Number:

    QPL9547

  • Manufacturer:

    Qorvo

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

QPL9547 Overview

Use the download button to access the QPL9547 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL95, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
