- Part Number QPL9547TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - QFN-9
- Released Date Aug 16, 2020
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL9547TR7 Details
-
Manufacturer Part Number:
QPL9547TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
ECCN Code:
5A991.B
-
HTS Code:
8517.62.00.90
-
Factory Lead Time:
16 Weeks
-
Date Of Intro:
2020-02-10
-
Manufacturer:
Qorvo
-
YTEOL:
6.83
-
Characteristic Impedance:
50 Ω
QPL9547TR7 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
-
Use a voltage regulator to maintain a stable 3.3V supply. Ensure the voltage supply is decoupled with 10uF and 100nF capacitors. Use a 1kohm resistor to bias the EN pin to VCC.
-
The QPL9547TR7 can handle up to 30dBm of input power. Exceeding this may cause damage to the device.
-
Use a spectrum analyzer to check the output frequency and power. Verify the input signal is within the specified range. Check the PCB layout and ensure proper decoupling and biasing.
-
Yes, the QPL9547TR7 is designed for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL9547TR7 Overview

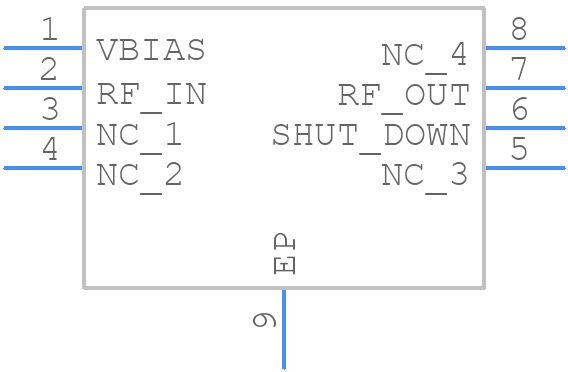

Use the download button to access the QPL9547TR7 schematic symbol, PCB footprint, and 3D model.
