QPP0100SR - Qorvo

Description: RF IC Limiter Radar 6GHz ~ 12GHz 100W 20-QFN (4x4), 50 Ohms, 50Ω, 100W, -55°C to 150°C

Download QPP0100SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

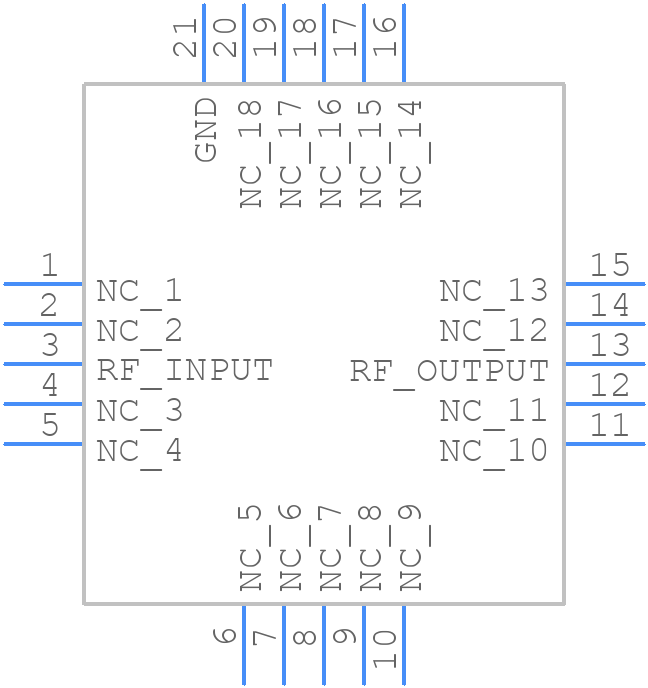

QPP0100SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPP0100SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4 mm 20L---
click to zoom
3D Models
QPP0100SR - Qorvo - 3D model - Quad Flat No-Lead - QFN 4x4 mm 20L---
click to zoom

QPP0100SR Details

  • Manufacturer Part Number:

    QPP0100SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Qorvo

  • RF/Microwave Device Type:

    LIMITER

QPP0100SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The QPP0100SR requires a bias voltage of 3.3V to 5V, and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range to avoid affecting the device's performance.
  • The QPP0100SR is rated for operation from -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and reliability.
  • Qorvo recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins of the QPP0100SR to protect against electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • Qorvo recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30 seconds, and a ramp rate of 3°C/second to ensure reliable solder joints and prevent damage to the device.
