- Part Number QPQ1060TR7
- Manufacturer Qorvo
- Pin Count 5
- Part Category Filter
- Package Category Other
- Footprint Name Other - QPQ1060TR7-2
- Released Date Jan 7, 2025
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPQ1060TR7 Details
-
Manufacturer Part Number:
QPQ1060TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
9
-
Center or Cutoff Frequency (fo/fc):
1575.42 MHz
-
Filter Type:
SAW FILTER
-
Height:
0.84 mm
-
Input Impedance:
50 OHM
QPQ1060TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize parasitic effects. Additionally, a thermal via array under the device can help to dissipate heat efficiently.
-
Qorvo provides a set of recommended matching networks for different frequencies and impedances in their application notes. However, the optimal matching network may vary depending on the specific use case and board layout. Engineers can use simulation tools like ADS or AWR to optimize the matching network for their specific design.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum safe operating temperature depends on the specific application and power dissipation. As a general rule, it's recommended to keep the junction temperature below 125°C to ensure long-term reliability. Engineers should perform thermal simulations and testing to determine the maximum safe operating temperature for their specific design.
-
Qorvo recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, engineers should ensure that their PCB design includes adequate ESD protection, such as TVS diodes or ESD protection arrays, to prevent damage during handling and assembly.
-
Qorvo recommends following the JEDEC standard for soldering profiles, specifically the J-STD-020D standard. The recommended profile includes a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. Engineers should consult the datasheet and Qorvo's application notes for more detailed information on soldering and assembly.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPQ1060TR7 Overview

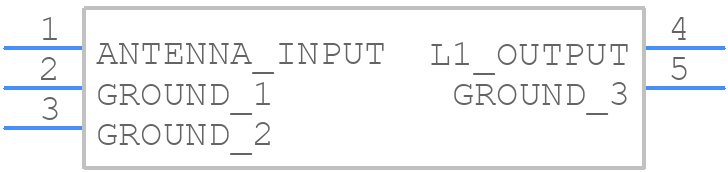

Use the download button to access the QPQ1060TR7 schematic symbol, PCB footprint, and 3D model.
