Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and application notes to help with this process.
Use a reflow soldering process with a peak temperature of 260°C. Ensure the device is handled and stored in an ESD-safe environment. Follow Qorvo's recommended assembly and soldering guidelines for optimal results.
Use a combination of visual inspection, signal integrity analysis, and debugging tools such as oscilloscopes and spectrum analyzers. Qorvo provides application notes and technical support to help with troubleshooting and debugging.
Qorvo performs a range of reliability tests, including temperature cycling, humidity testing, and electrical overstress testing. The device is also qualified according to industry standards such as JEDEC and AEC-Q100.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPQ1282TR7 Overview

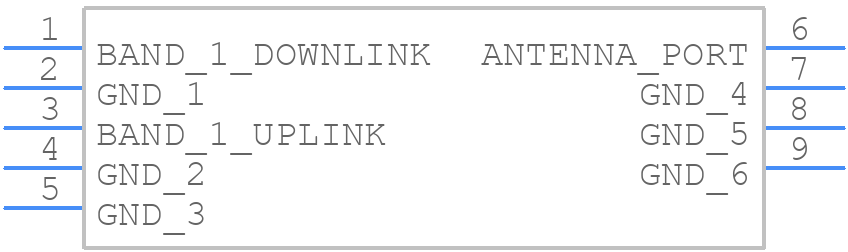

Use the download button to access the QPQ1282TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPQ12,
or try a keyword search, such as Duplexers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
