Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
Qorvo offers a free online tool, Qorvo's RF Design Environment (RFDE), which allows designers to simulate and optimize input and output matching networks for their specific application. Additionally, Qorvo's application engineers can provide custom matching network designs upon request.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo's application note AN-2171 recommends derating the device's power output by 1 dB for every 10°C above 70°C to ensure reliable operation. This means the maximum operating temperature range is effectively -40°C to 70°C for full power output.
Qorvo recommends following good EMC design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as necessary. Additionally, Qorvo's application note AN-2171 provides guidelines for reducing EMI in QPQ2455SR-based designs.
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering and assembly of the QPQ2455SR. This standard provides guidelines for reflow soldering, wave soldering, and manual soldering to ensure reliable assembly and minimize defects.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPQ2455SR Overview

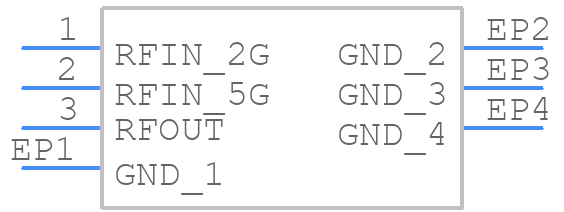

Use the download button to access the QPQ2455SR schematic symbol, PCB footprint, and 3D model.
