- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QPQ6108TR7
- Part Number QPQ6108TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 9 Pad 2.00 mm x 2.50 mm x 0.87 mm SMP
- Released Date Feb 27, 2023
- Last Modified Date Oct 9, 2023 6:28 AM UTC

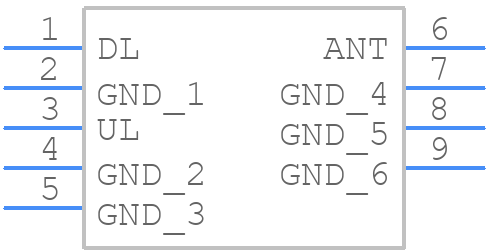

- Pinout / Pin List Click Here (Member Only)
QPQ6108TR7 Details
-
Manufacturer Part Number:
QPQ6108TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
3
-
Additional Feature:
CENTER FREQ TX/RX:897.5 MHZ
-
Filter Type:
DUPLEXER
-
Height:
0.87 mm
-
Insertion Loss (Rx):
4 dB
-
Insertion Loss (Tx):
4 dB
QPQ6108TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The QPQ6108TR7 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the opposite side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling capabilities at higher temperatures to ensure reliability and prevent thermal runaway. Consult Qorvo's application notes for more information on thermal derating.
-
Qorvo provides a set of recommended matching circuits and component values in their application note AN-2171. These circuits can be used to match the input and output of the device to the desired impedance, ensuring optimal power transfer and minimal signal reflection.
-
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering the QPQ6108TR7. This standard outlines the recommended soldering temperature profile, soldering time, and other parameters to ensure reliable assembly and minimize the risk of damage to the device.
Trust Checks
Community Provided
System Verified
Community Approved
QPQ6108TR7 Overview
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
