QRF8-078-01-S-RA-GP footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

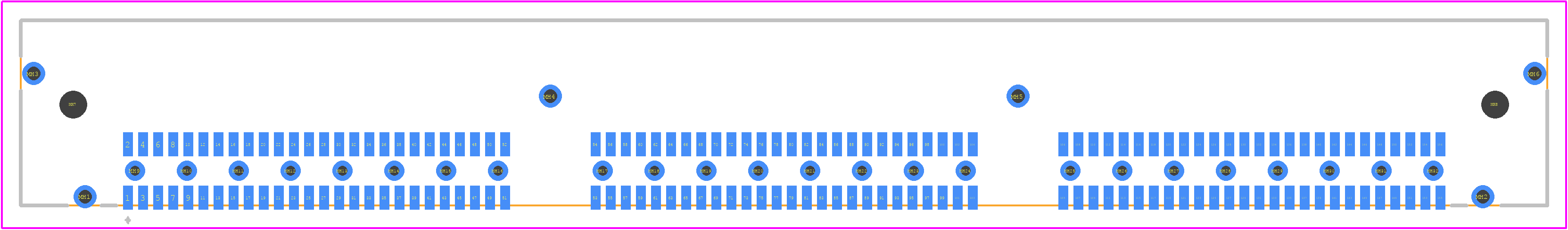

QRF8-078-01-S-RA-GP - SAMTEC PCB footprint - Other - Other - QRF8-078-01-S-RA-GP-1

click to zoom

3D Models

QRF8-078-01-S-RA-GP - SAMTEC - 3D model - Other - QRF8-078-01-S-RA-GP-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QRF8-078-01-S-RA-GP
Part Number QRF8-078-01-S-RA-GP
Manufacturer SAMTEC
Pin Count 186
Part Category Connector
Package Category Other
Footprint Name Other - QRF8-078-01-S-RA-GP-1
Released Date Nov 22, 2023
Last Modified Date Nov 23, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

QRF8-078-01-S-RA-GP Details

Manufacturer Part Number:
QRF8-078-01-S-RA-GP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks, 3 Days
Manufacturer:
Samtec Inc
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e3

QRF8-078-01-S-RA-GP Frequently Asked Questions (FAQs)

The recommended torque for the screws on the QRF8-078-01-S-RA-GP connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the QRF8-078-01-S-RA-GP connector is designed for high-speed signals up to 28 Gbps and is suitable for applications such as 10GbE, PCIe, and SATA.
The operating temperature range of the QRF8-078-01-S-RA-GP connector is -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications.
Yes, the QRF8-078-01-S-RA-GP connector is RoHS and REACH compliant, making it suitable for use in EU and other regions with similar regulations.
The mating cycle life of the QRF8-078-01-S-RA-GP connector is 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.

Trust Checks

Community Provided

System Verified

Community Approved

QRF8-078-01-S-RA-GP Overview

Use the download button to access the QRF8-078-01-S-RA-GP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like QRF8-, or try a keyword search, such as Headers and Edge Type Connectors
