The recommended mating sequence for QRM8-026-07.0-L-D-A is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the QRM8-026-07.0-L-D-A is designed to withstand high-vibration environments. Samtec's QRM series connectors are tested to meet the requirements of IEC 61373 Cat. 2, which includes vibration testing.
The maximum operating temperature for QRM8-026-07.0-L-D-A is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
The QRM8-026-07.0-L-D-A has a specific mating height of 7.0mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the connector's performance and reliability. Consult with Samtec's application engineers for custom solutions.
The typical lead time for QRM8-026-07.0-L-D-A varies depending on the quantity and availability. However, Samtec typically quotes a lead time of 6-8 weeks for standard products. Expedited options may be available for an additional fee.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QRM8-026-07.0-L-D-A Overview

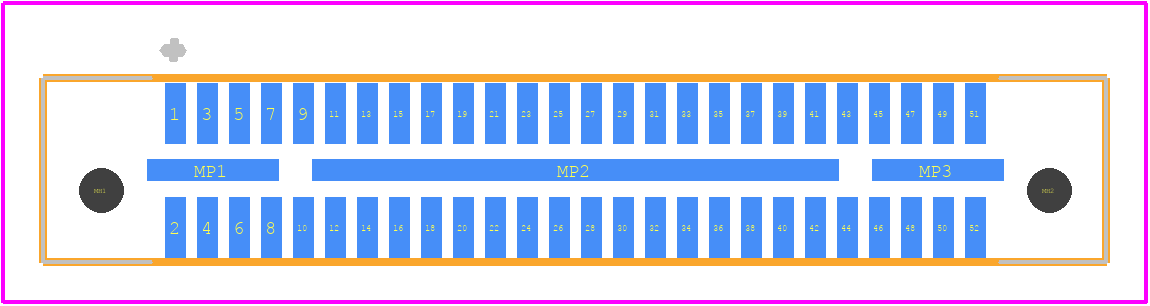

Use the download button to access the QRM8-026-07.0-L-D-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QRM8-,
or try a keyword search, such as Headers and Edge Type Connectors
