Description:The QS3244 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT244, 74F244, 74ALS/AS/ LS244 8-bit drivers. The low ON resistance (5 ohm) of the 3244 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3244 operates at -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for signal integrity, power supply, and thermal management.
Renesas recommends following the thermal design guidelines in the datasheet, including using a heat sink, thermal interface material, and ensuring good airflow. Additionally, consider using thermal simulation tools to optimize the design.
The datasheet provides general guidelines for capacitor selection, but Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of 10V or higher for CIN and COUT. The capacitor values should be chosen based on the specific application requirements and noise tolerance.
Renesas provides a troubleshooting guide in their application note documents, which covers common issues and their solutions. Additionally, engineers can use simulation tools, such as SPICE models, to analyze and debug their designs.
Yes, Renesas recommends following good EMI/EMC design practices, such as using a shielded layout, minimizing loop areas, and using EMI filters. Additionally, the datasheet provides guidance on EMI/EMC testing and compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3244PAG Overview

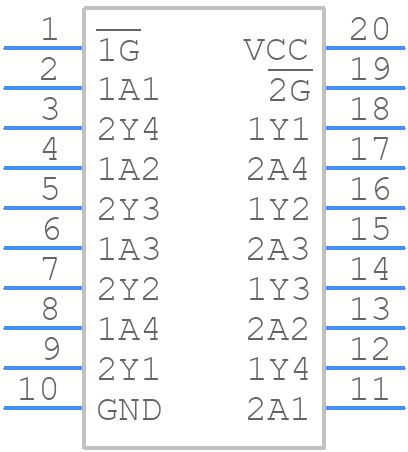

Use the download button to access the QS3244PAG schematic symbol, PCB footprint, and 3D model.
