Description:The QS3245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/ LS245 8-bit transceivers. The low ON resistance of the QS3245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3245 operates at -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal management guidelines for the QS3245SOG. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The QS3245SOG has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to connect an external resistor (R_OCP) between the OCP pin and GND, and set the OCP threshold using the OCP register. Refer to the datasheet and application notes for more information.
The recommended power-up sequence for the QS3245SOG is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the internal voltage regulators and analog circuits are properly initialized before the digital logic is enabled.
The QS3245SOG has multiple low-power modes, including shutdown, standby, and sleep modes. To configure the device for low-power mode, you need to set the corresponding bits in the power management register (PMR) and follow the recommended power-down sequence. Refer to the datasheet and application notes for more information.
The maximum allowed voltage on the input pins of the QS3245SOG is the voltage rating of the device, which is typically 5.5V. However, it's essential to ensure that the input voltage does not exceed the absolute maximum rating specified in the datasheet to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3245SOG Overview

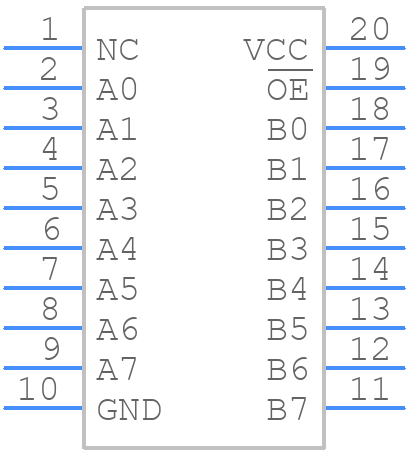

Use the download button to access the QS3245SOG schematic symbol, PCB footprint, and 3D model.
