QS3257QG - Renesas Electronics

Description: The QS3257 is a high-speed CMOS LVTTL-compatible Quad 2:1 multiplexer/demultiplexer. The QS3257 is a function and pinout compatible QuickSwitch version of the 74F257, 74FCT257, and the 74ALS/AS/LS257 Quad 2:1 multiplexers. The low ON resistance of the QS3257 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3257 operates at -40C to +85C.

Download QS3257QG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

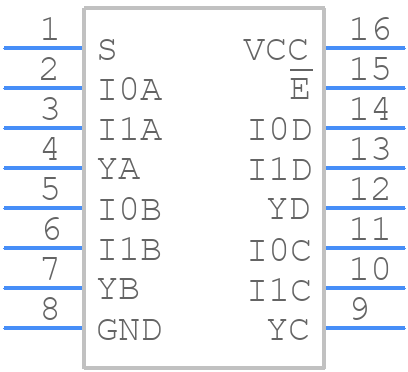

QS3257QG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
QS3257QG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP16-ren3
click to zoom
3D Models
QS3257QG - Renesas Electronics - 3D model - Small Outline Packages - SSOP16-ren3
click to zoom

QS3257QG Details

  • Manufacturer Part Number:

    QS3257QG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PCG16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    QS3V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS EXCHANGER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Ports:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.25 ns

  • Propagation Delay (tpd):

    0.25 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
