Description:The QS3L384 provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS3L384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Two bus enable signals are provided, one for each of the upper and lower five bits of the two 10-bit buses. The QS3L384 operates at -40C to +85C.
A good PCB layout for the QS3L384QG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper powering and decoupling of the QS3L384QG, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins, and consider adding a ferrite bead or a power choke to filter out high-frequency noise.
The QS3L384QG has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To troubleshoot issues with the QS3L384QG's output signal, check the input signal quality, ensure proper power supply and decoupling, and verify the device's configuration and programming. Use an oscilloscope to analyze the output signal and look for signs of distortion, noise, or oscillation.
The QS3L384QG is not specifically designed or qualified for radiation-hardened or high-reliability applications. If you need a radiation-hardened or high-reliability device, consider using a different part from Renesas or another manufacturer that is specifically designed and qualified for such applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3L384QG Overview

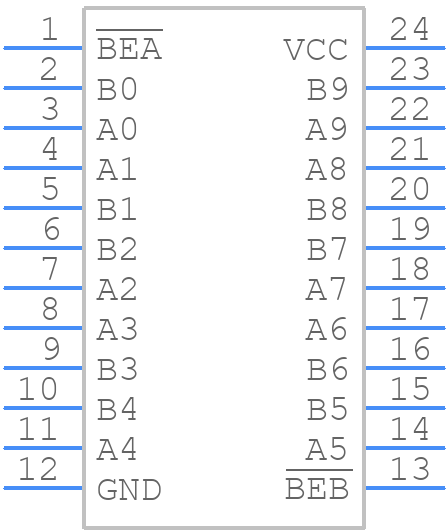

Use the download button to access the QS3L384QG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS3L3,
or try a keyword search, such as Bus Driver/Transceivers
