QS3VH16861PAG - Renesas Electronics

Description: The QS3VH16861 HotSwitch with 20-bit flow-though pin out is a high bandwidth bus switch with very low ON resistance, resulting in under 250ps propagation delay through the switch. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH16861 ideal for high performance communications applications. The QS3VH16861 operates from -40C to +85C.

Download QS3VH16861PAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

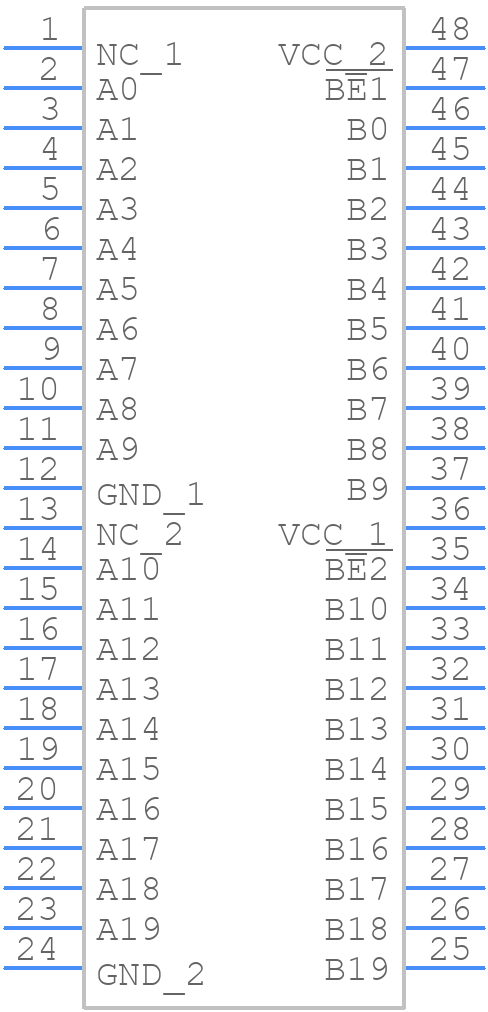

QS3VH16861PAG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

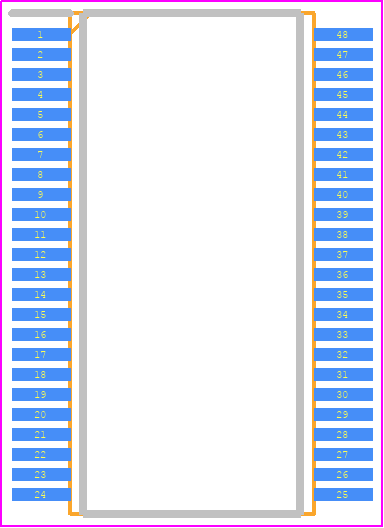

QS3VH16861PAG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PAG48
click to zoom
3D Models
QS3VH16861PAG - Renesas Electronics - 3D model - Small Outline Packages - PAG48
click to zoom

QS3VH16861PAG Details

  • Manufacturer Part Number:

    QS3VH16861PAG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PAG48

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    CB3Q/3VH/3C/2B

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.2 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

QS3VH16861PAG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • Renesas recommends using a power management IC (PMIC) specifically designed for the QS3VH16861PAG. The PMIC should be able to provide the required voltage rails, power sequencing, and voltage regulation. Renesas provides guidance on power sequencing and voltage regulation in their application notes and design guides.
  • The recommended operating conditions for the QS3VH16861PAG are typically specified in the datasheet. However, for more detailed information, engineers can refer to Renesas' reliability and quality documents, which provide guidance on operating conditions, including temperature, humidity, and vibration.
  • Renesas provides debugging tools, such as development boards and software development kits (SDKs), to help engineers troubleshoot and debug issues with the QS3VH16861PAG. Additionally, Renesas' technical support team and community forums can provide valuable resources and guidance for debugging and troubleshooting.
  • Renesas offers a range of development tools and software for the QS3VH16861PAG, including development boards, SDKs, and compilers. Engineers can find more information on these tools and software on Renesas' website and through their technical support team.
