Description:The QS3VH2245 is a high bandwidth 8-bit bus switch. The QS3VH2245, with 25 ohm ON resistance and 1.35ns propagation delay, is ideal for line matching and low noise environments. The combination of small propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH2245 ideal for high performance communication applications. The QS3VH2245 operates from -40C to +85C.
Renesas provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
A reliable POR circuit can be implemented using an external voltage supervisor IC or a discrete component circuit. Renesas recommends using a voltage supervisor IC like the RP108 series, which provides a precise POR signal and brown-out detection.
To ensure EMI and ESD protection, follow Renesas' guidelines for PCB layout, use EMI filters, and add ESD protection devices like TVS diodes or ESD arrays. Additionally, consider using a shielded enclosure and implementing good grounding practices.
Use Renesas' recommended debugging tools, such as logic analyzers and oscilloscopes, to analyze signal integrity and timing. Also, consult the device's datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Operating the device beyond the recommended temperature range can lead to reduced performance, increased power consumption, and potentially even device failure. Ensure that your design takes into account the device's thermal characteristics and provides adequate cooling mechanisms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3VH2245QG8 Overview

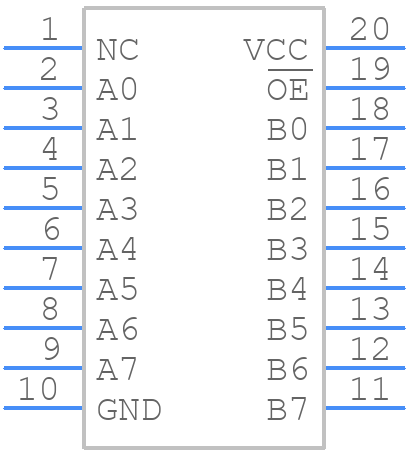

Use the download button to access the QS3VH2245QG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS3VH,
or try a keyword search, such as Bus Driver/Transceivers
