QS6J11TR - ROHM Semiconductor

Description: 1.5V Drive Pch+Pch MOSFET

Download QS6J11TR Model

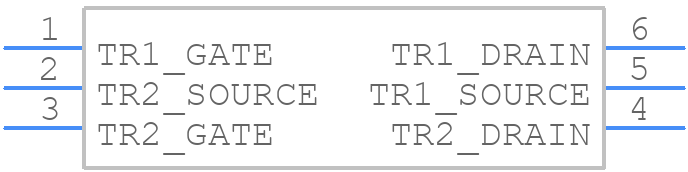

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS6J11TR - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSMT6_2022
click to zoom
3D Models
QS6J11TR - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - TSMT6_2022
click to zoom

QS6J11TR Details

  • Manufacturer Part Number:

    QS6J11TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    2 A

  • Drain-source On Resistance-Max:

    0.105 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    8 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS6J11TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for QS6J11TR is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger output capacitor and to minimize the distance between the output capacitor and the IC.
  • The maximum output current of QS6J11TR is 1A.
  • To protect QS6J11TR from overheating, ensure good heat dissipation by using a heat sink or a thermal pad, and avoid operating the device at high temperatures (above 85°C) for extended periods.
  • Yes, QS6J11TR can operate in high-temperature environments up to 125°C, but the output current should be derated accordingly to prevent overheating.
