QS6J1TR - ROHM Semiconductor

Description: -20V Pch+Pch Small Signal MOSFET

Download QS6J1TR Model

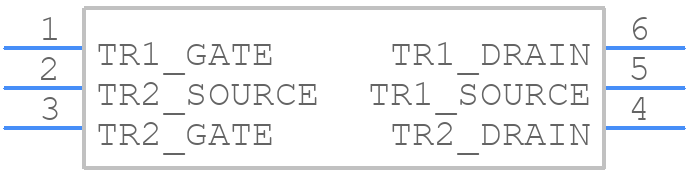

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS6J1TR - ROHM Semiconductor PCB footprint - Other - Other -  TSMT6_2022
click to zoom
3D Models
QS6J1TR - ROHM Semiconductor  - 3D model - Other -  TSMT6_2022
click to zoom

QS6J1TR Details

  • Manufacturer Part Number:

    QS6J1TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    1.5 A

  • Drain-source On Resistance-Max:

    0.235 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    6 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS6J1TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for QS6J1TR is 2.7V to 5.5V, although it can tolerate up to 6.5V for short periods.
  • To ensure stability, it's essential to use a capacitor with a value between 1uF to 10uF, and an ESR (Equivalent Series Resistance) of less than 1 ohm, between the VOUT and GND pins.
  • The maximum output current that QS6J1TR can provide is 1A, but it's recommended to keep the output current below 0.8A for stable operation.
  • To protect QS6J1TR from overheating, ensure good thermal conductivity by using a heat sink or a thermal pad, and keep the ambient temperature below 85°C.
  • While QS6J1TR can operate up to 125°C, it's recommended to derate the output current and voltage to ensure reliable operation in high-temperature environments.
