QSB10024S12 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 12V 8.3A 9V - 36V Input

Download QSB10024S12 Model

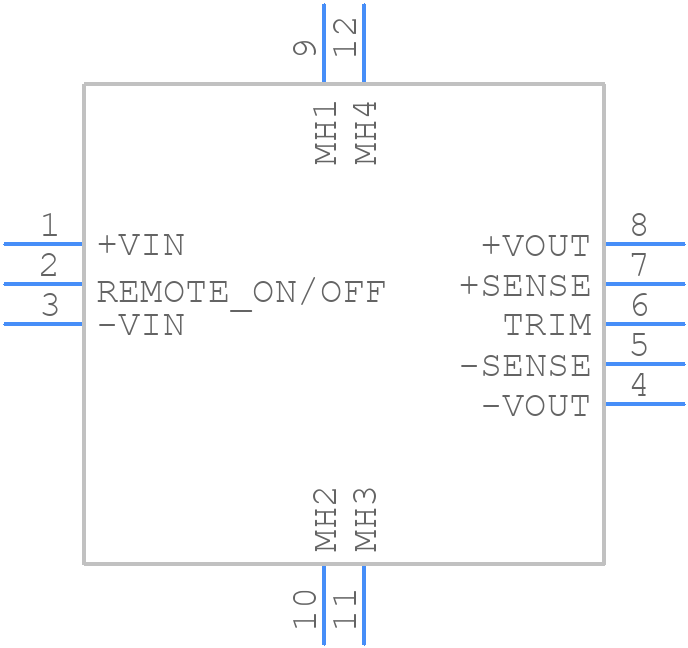

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

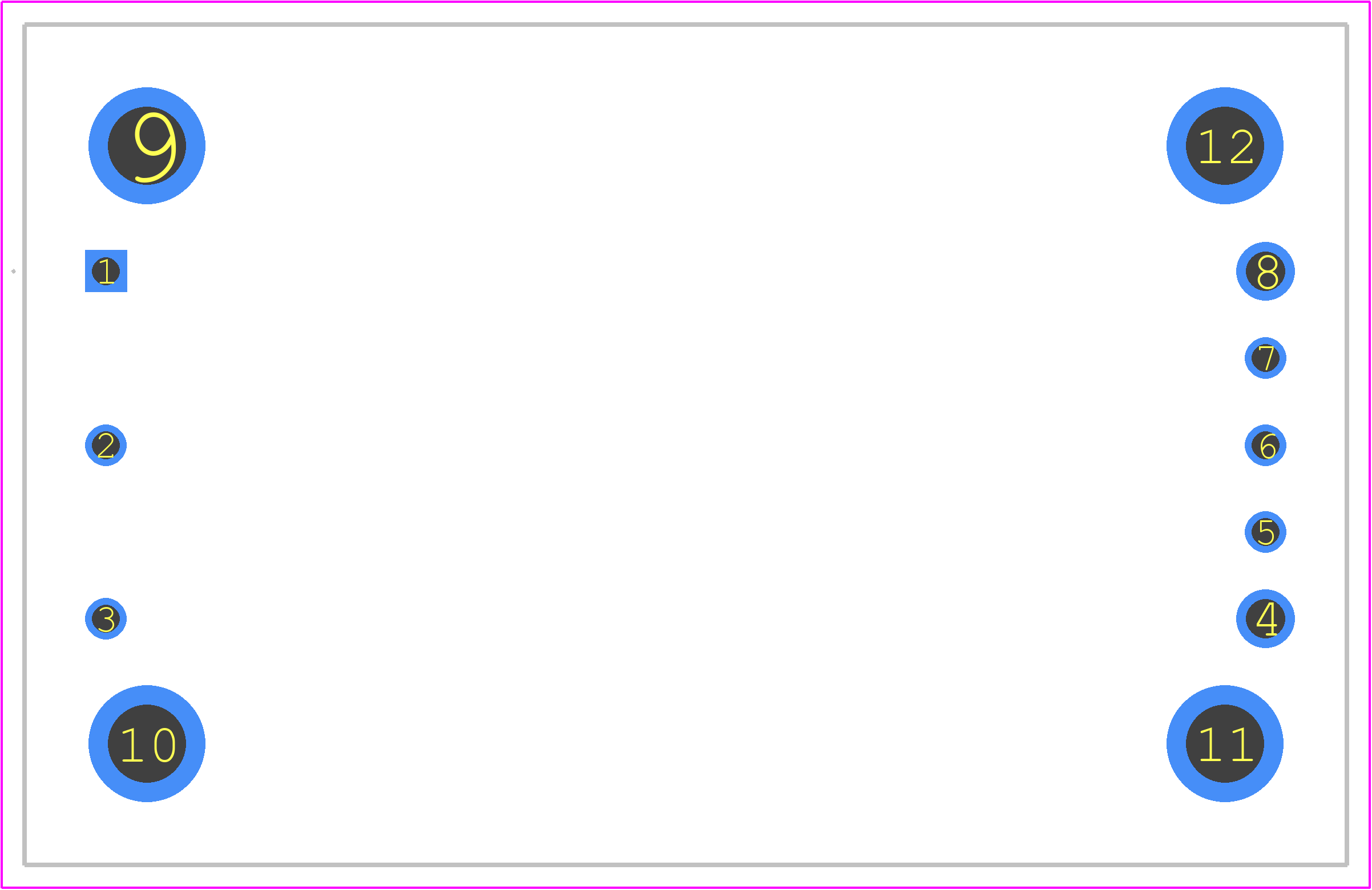

PCB Footprints
QSB10024S12 - XP POWER PCB footprint - Other - Other - QSB10024S12
click to zoom
3D Models
QSB10024S12 - XP POWER  - 3D model - Other - QSB10024S12
click to zoom

QSB10024S12 Details

  • Manufacturer Part Number:

    QSB10024S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    57.9 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.95 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    99.6 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.8 mm

QSB10024S12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB10024S12 is 0.1uF. Exceeding this value may affect the stability of the output voltage.
  • The QSB10024S12 is rated for operation up to 80°C ambient temperature. However, derating is required for temperatures above 60°C. Consult the datasheet for derating curves.
  • The QSB10024S12 meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult with XP Power or a certified test house for customized certification.
  • A well-designed PCB layout with adequate thermal management is crucial for the QSB10024S12. Ensure good airflow, use thermal vias, and follow XP Power's recommended layout guidelines to minimize thermal resistance.
  • Yes, multiple QSB10024S12 modules can be paralleled for higher power. However, ensure that the modules are identical, and the output voltages are synchronized to prevent oscillations.
