QSB10024S3V3 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC CONVERTER 100W

Download QSB10024S3V3 Model

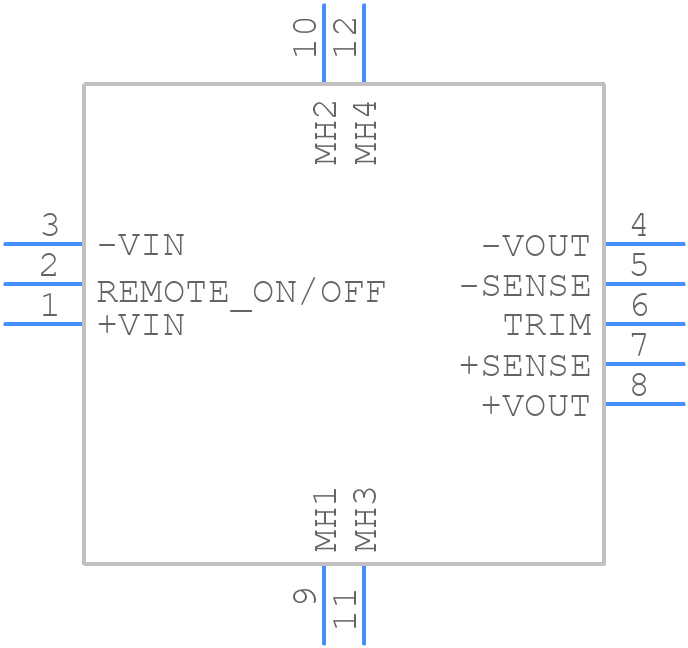

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

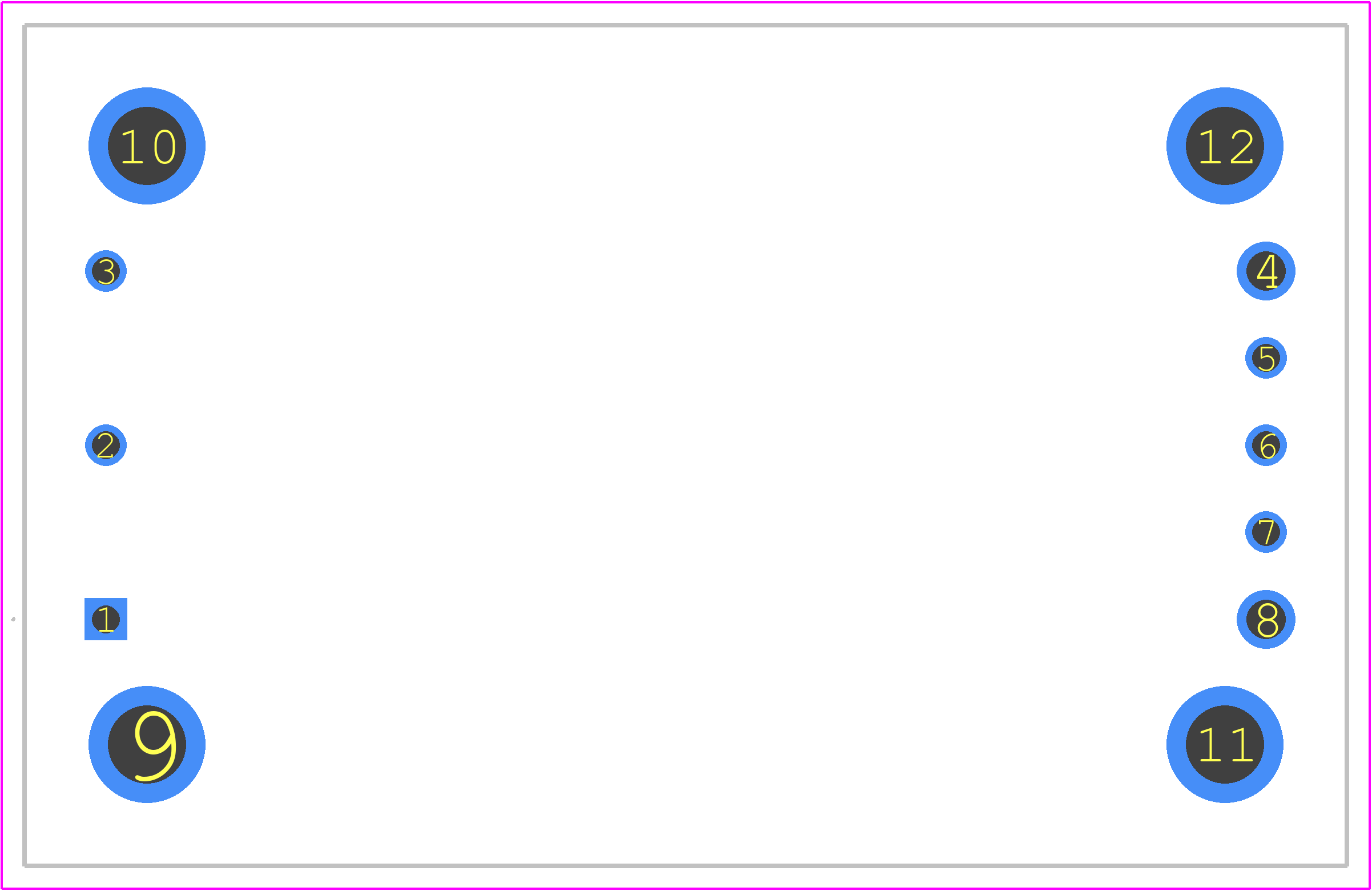

PCB Footprints
QSB10024S3V3 - XP POWER PCB footprint - Other - Other - QSB10024S3V3-2
click to zoom
3D Models
QSB10024S3V3 - XP POWER  - 3D model - Other - QSB10024S3V3-2
click to zoom

QSB10024S3V3 Details

  • Manufacturer Part Number:

    QSB10024S3V3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    57.9 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    3.63 V

  • Output Voltage-Min:

    2.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.95 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    99 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.8 mm

QSB10024S3V3 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB10024S3V3 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The QSB10024S3V3 is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
  • The QSB10024S3V3 meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult XP Power's certification documentation and contact their support team for specific requirements.
  • XP Power provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, thermal vias, and copper pours. Following this layout ensures optimal performance and thermal management.
  • Yes, the QSB10024S3V3 can be used in redundant or parallel configurations, but specific design considerations and synchronization techniques may be required to ensure proper operation. Consult XP Power's application notes and support team for guidance.
