The maximum operating temperature range for the QSB15024S12 is -40°C to +100°C, with a derating of 2.5% per °C above 80°C.
To ensure reliability in high-vibration environments, it is recommended to follow XP Power's guidelines for mounting and securing the module, and to consider the use of vibration-dampening materials or potting compounds.
The recommended input fuse rating for the QSB15024S12 is 5A slow-blow, but this may vary depending on the specific application and input voltage.
Yes, the QSB15024S12 can be used in a redundant configuration, but it is recommended to consult with XP Power's application engineers to ensure proper implementation and to discuss any specific requirements or considerations.
The typical efficiency of the QSB15024S12 is around 92-94% at full load, depending on the input voltage and output load.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QSB15024S12 Overview

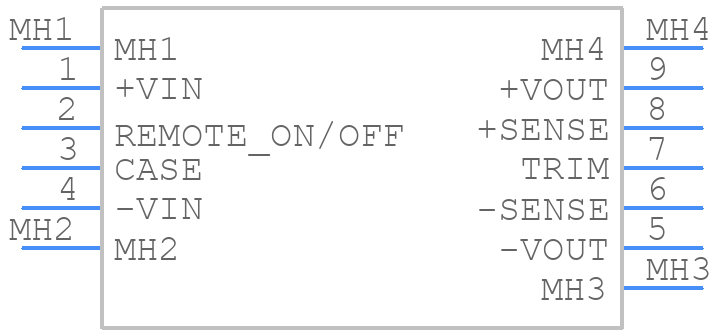

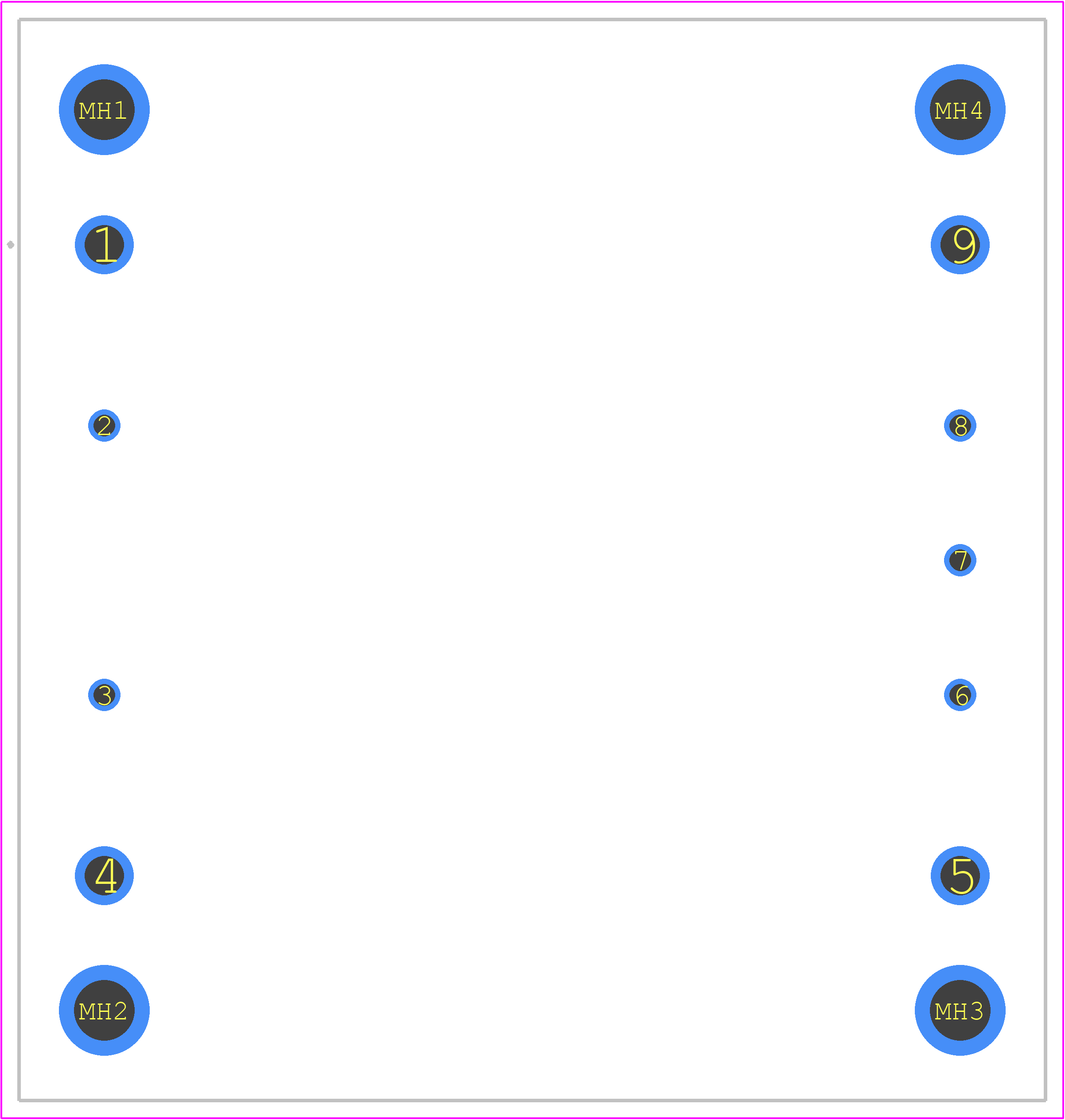

Use the download button to access the QSB15024S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSB15,
or try a keyword search, such as Power Supply Modules
