The maximum capacitance load for the QSB15024S24 is 0.1uF to 10uF. Exceeding this range may affect the stability of the output voltage.
The QSB15024S24 is rated for operation up to 80°C ambient temperature, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
The QSB15024S24 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification reports and ensure the specific configuration meets your requirements.
The recommended input fuse rating for the QSB15024S24 is 2A to 5A, depending on the input voltage and current requirements. Consult the datasheet and application notes for more information.
Yes, you can parallel multiple QSB15024S24 modules to increase the output power, but ensure proper synchronization and current sharing. Consult the application notes and XP Power's technical support for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QSB15024S24 Overview

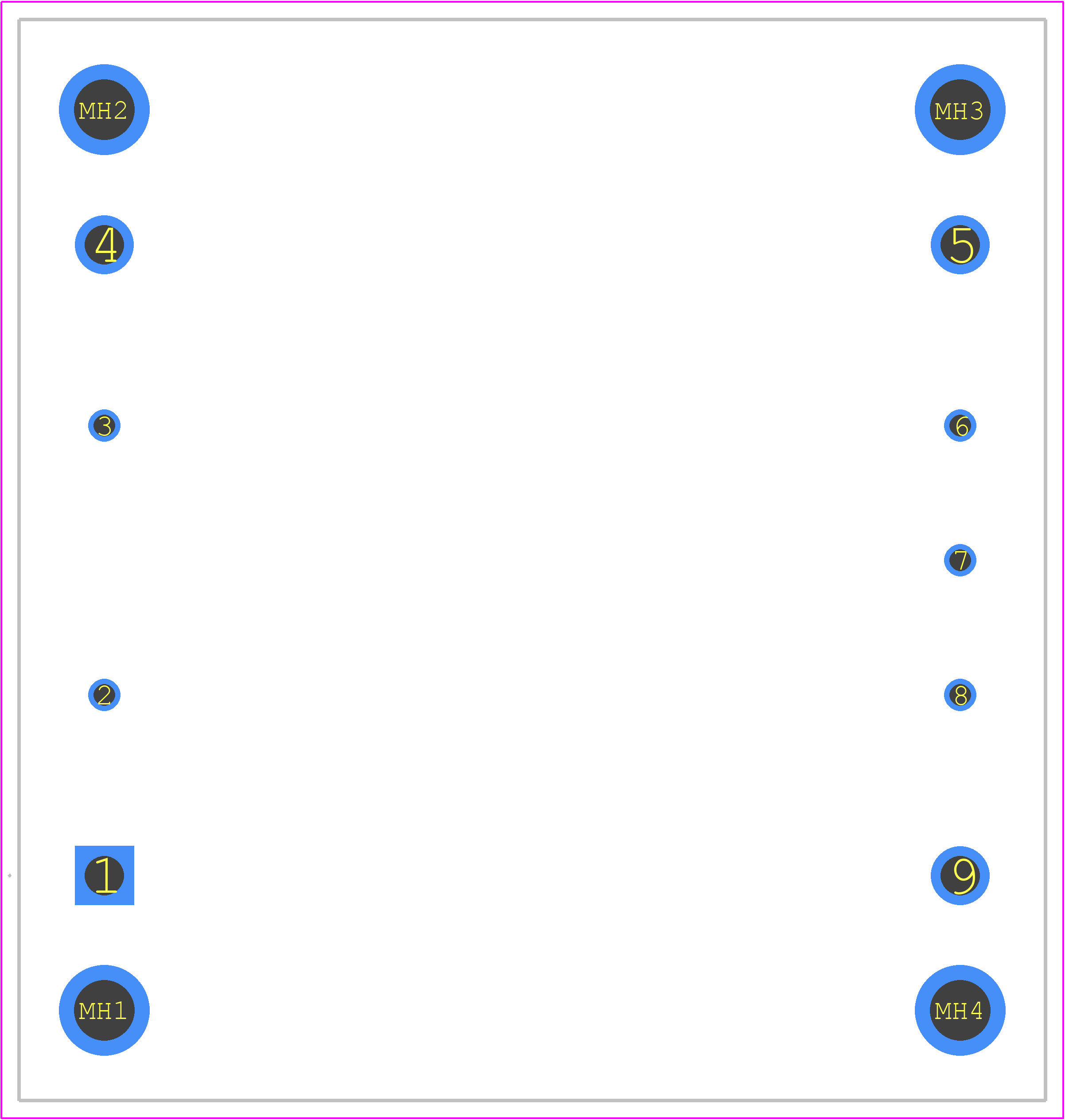

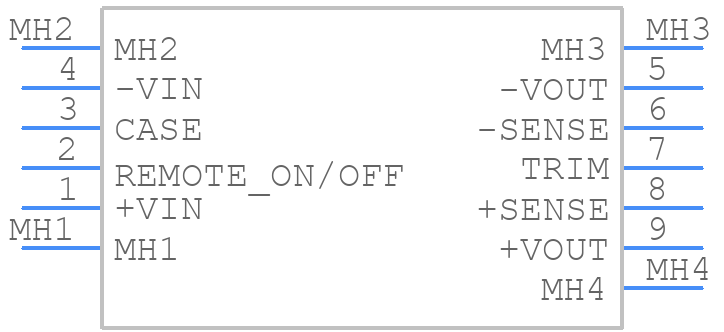

Use the download button to access the QSB15024S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSB15,
or try a keyword search, such as Power Supply Modules
