QSB15048S12 - XP POWER

Description: XP Power QSB150 DC-DC Converter, 12V dc/ 12.5A Output, 18 → 75 V dc Input, 150W, PCB Mount, +100°C Max Temp

Download QSB15048S12 Model

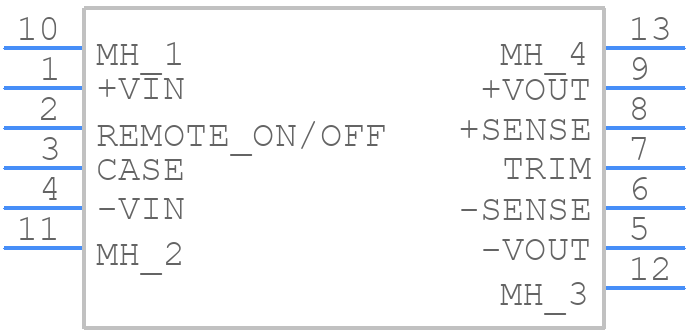

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

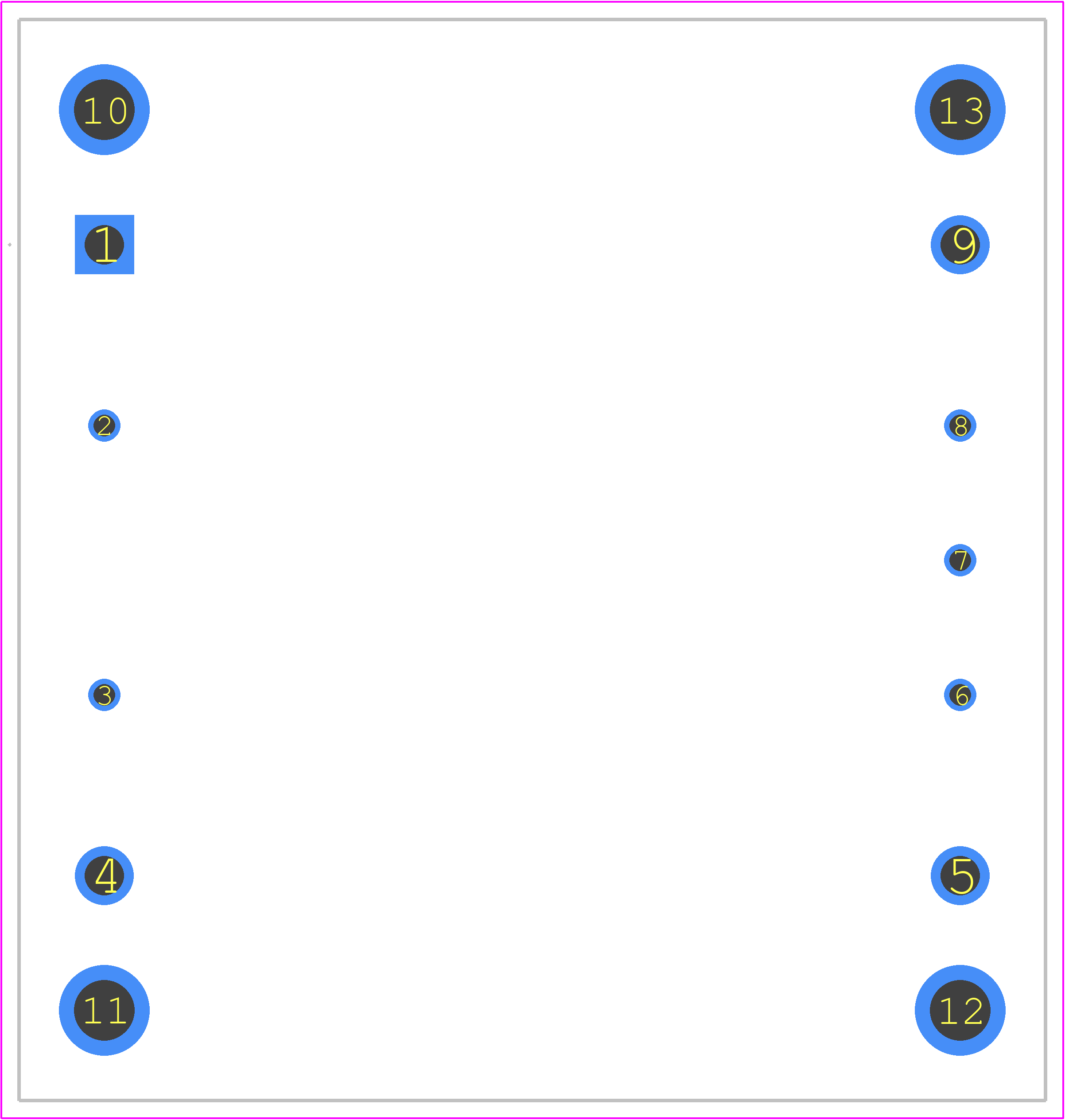

QSB15048S12 - XP POWER PCB footprint - Other - Other - 61 X 57.9 X 12.7mm
click to zoom

QSB15048S12 Details

  • Manufacturer Part Number:

    QSB15048S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB15048S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
  • To ensure reliable start-up in high-temperature environments, XP Power recommends using a soft-start circuit or a ramp-up circuit to limit the inrush current during start-up. This can be achieved using an external circuit or by using a module with a built-in soft-start feature.
  • The maximum capacitance on the output of the QSB15048S12 is 47μF. Exceeding this value may cause instability or oscillation in the module. It's recommended to use a capacitance value that is less than or equal to 47μF to ensure stable operation.
  • Yes, the QSB15048S12 can be used in a redundant configuration to achieve high reliability and availability. However, it's essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent any potential issues.
  • XP Power recommends using a fuse with a rating of 5A or less to protect the module from input overcurrent conditions. The fuse should be located as close to the input of the module as possible to ensure effective protection.
