QSB20024S12 - XP POWER

Description: XP Power QSB200 200W Isolated DC-DC Converter PCB Mount, Vin 10 → 36 V dc, Vout 12V dc, I/O isolation 1.5kV dc

Download QSB20024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

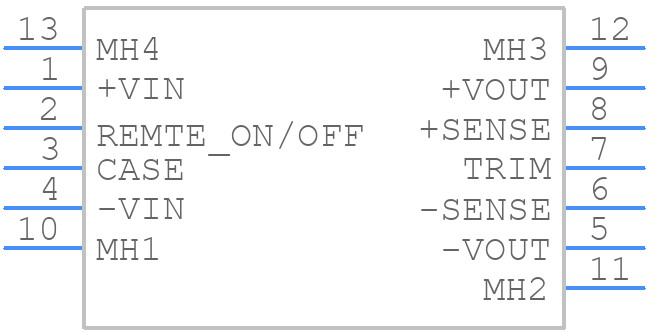

QSB20024S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

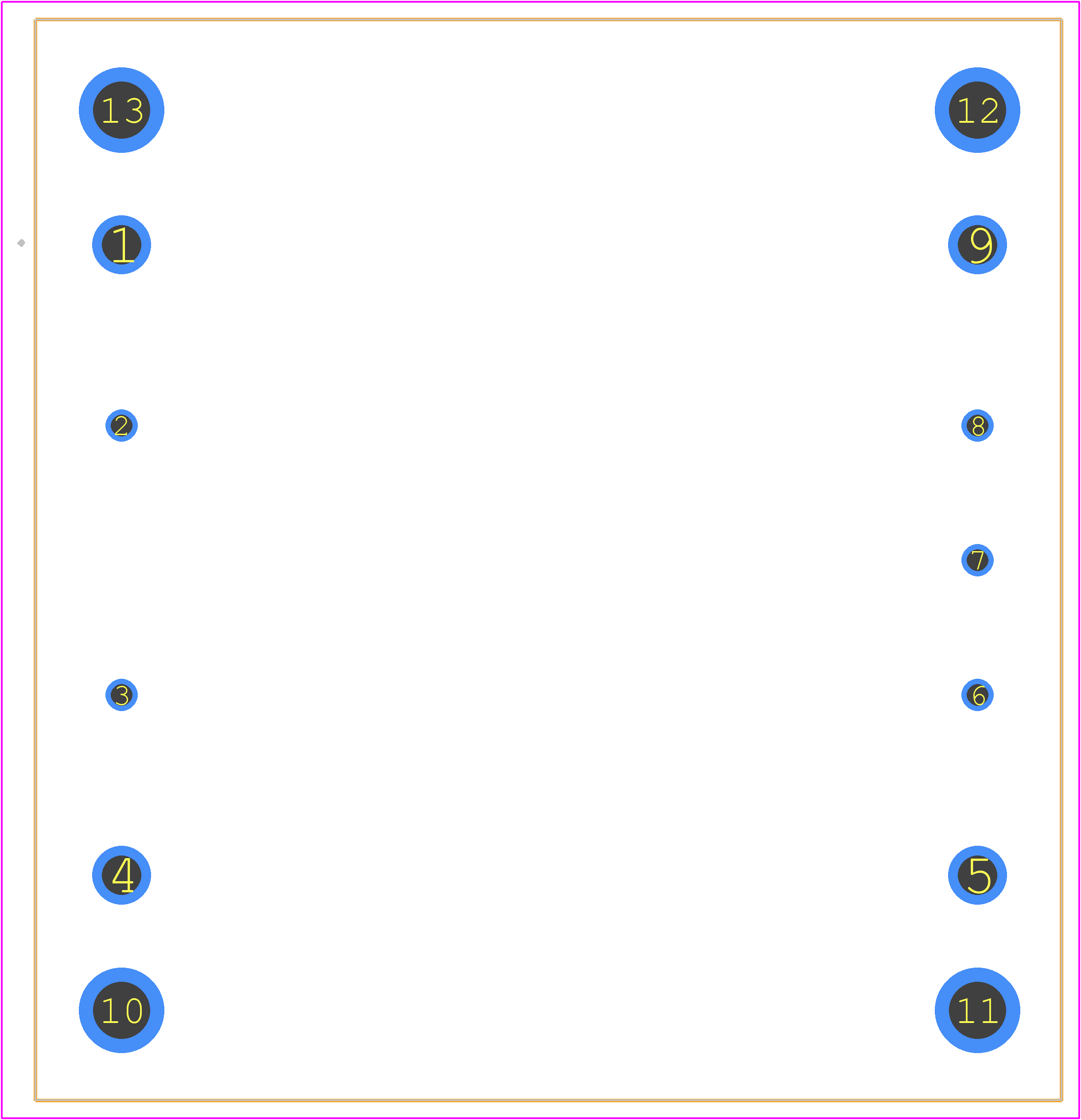

QSB20024S12 - XP POWER PCB footprint - Other - Other - QSB20024S12
click to zoom
3D Models
QSB20024S12 - XP POWER - 3D model - Other - QSB20024S12
click to zoom

QSB20024S12 Details

  • Manufacturer Part Number:

    QSB20024S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    200.4 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB20024S12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the QSB20024S12 is -40°C to +100°C, with a derating of 2.5% per °C above 80°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow XP Power's guidelines for mounting and securing the module, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • Yes, the QSB20024S12 has a high isolation voltage of 2000VAC, making it suitable for applications requiring high isolation, such as medical devices or industrial control systems.
  • The recommended input capacitance for the QSB20024S12 is 10uF to 22uF, depending on the specific application and input voltage requirements.
  • To troubleshoot issues with the QSB20024S12, refer to XP Power's application notes and troubleshooting guides, and consider consulting with XP Power's technical support team or a qualified engineer.
