QSB20024S15 - XP POWER

Description: XP Power QSB200 200W Isolated DC-DC Converter PCB Mount, Vin 10 → 36 V dc, Vout 15V dc, I/O isolation 1.5kV dc

Download QSB20024S15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

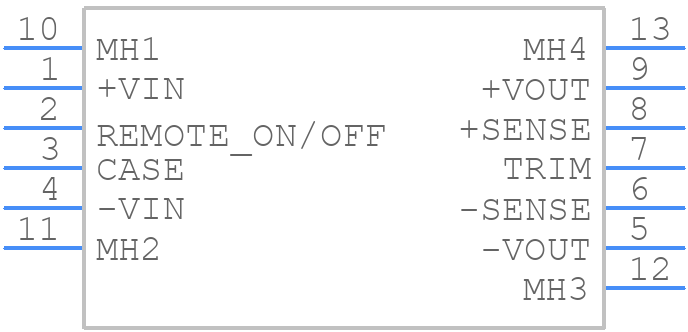

Symbol
QSB20024S15 - XP POWER - PCB symbol
click to zoom

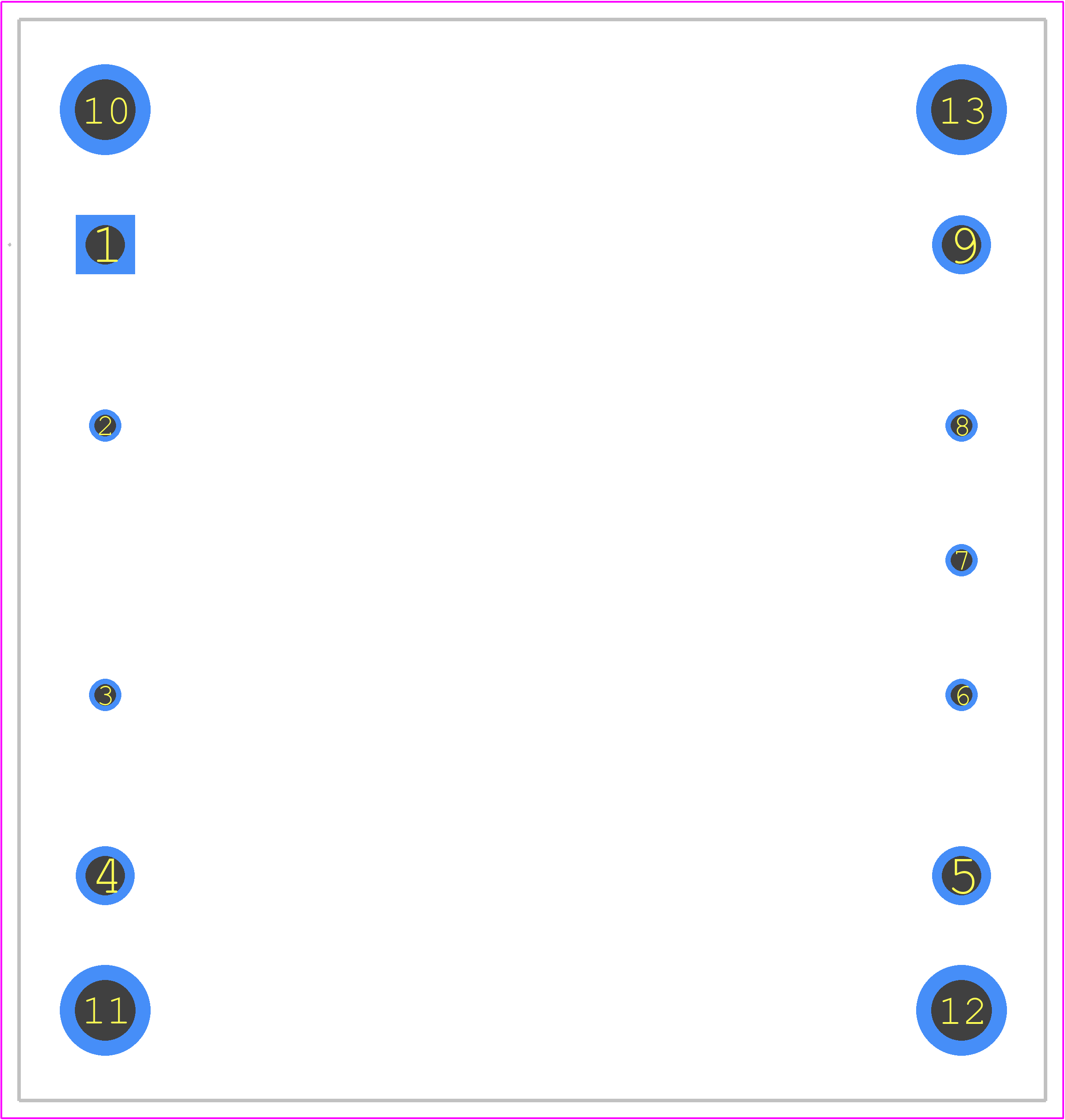

PCB Footprints
QSB20024S15 - XP POWER PCB footprint - Other - Other - 9-DIP Module
click to zoom
3D Models
QSB20024S15 - XP POWER - 3D model - Other - 9-DIP Module
click to zoom

QSB20024S15 Details

  • Manufacturer Part Number:

    QSB20024S15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    199.5 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB20024S15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding to minimize electromagnetic radiation.
  • XP Power provides a derating curve in the datasheet, which shows the maximum output power vs. altitude. For example, at 10,000 feet, the output power is derated by 10%.
  • Yes, the QSB20024S15 can be used in a redundant configuration, but XP Power recommends following the guidelines in the datasheet for parallel operation and ensuring that the power supplies are properly synchronized and monitored.
  • According to XP Power, the MTBF of the QSB20024S15 is >500,000 hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QSB20024S15 Overview

Use the download button to access the QSB20024S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSB20, or try a keyword search, such as Power Supply Modules
