QSB20024S24 - XP POWER

Description: XP Power QSB200 200W Isolated DC-DC Converter PCB Mount, Vin 10 → 36 V dc, Vout 24V dc, I/O isolation 1.5kV dc 8.30 A 100 mA 9.54 A Efficiency 87.0%

Download QSB20024S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

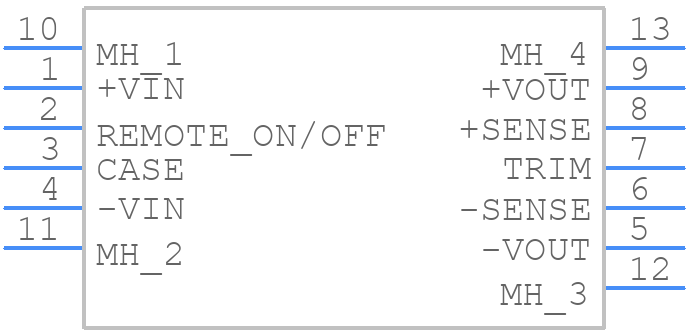

QSB20024S24 - XP POWER - PCB symbol
click to zoom
PCB Footprints

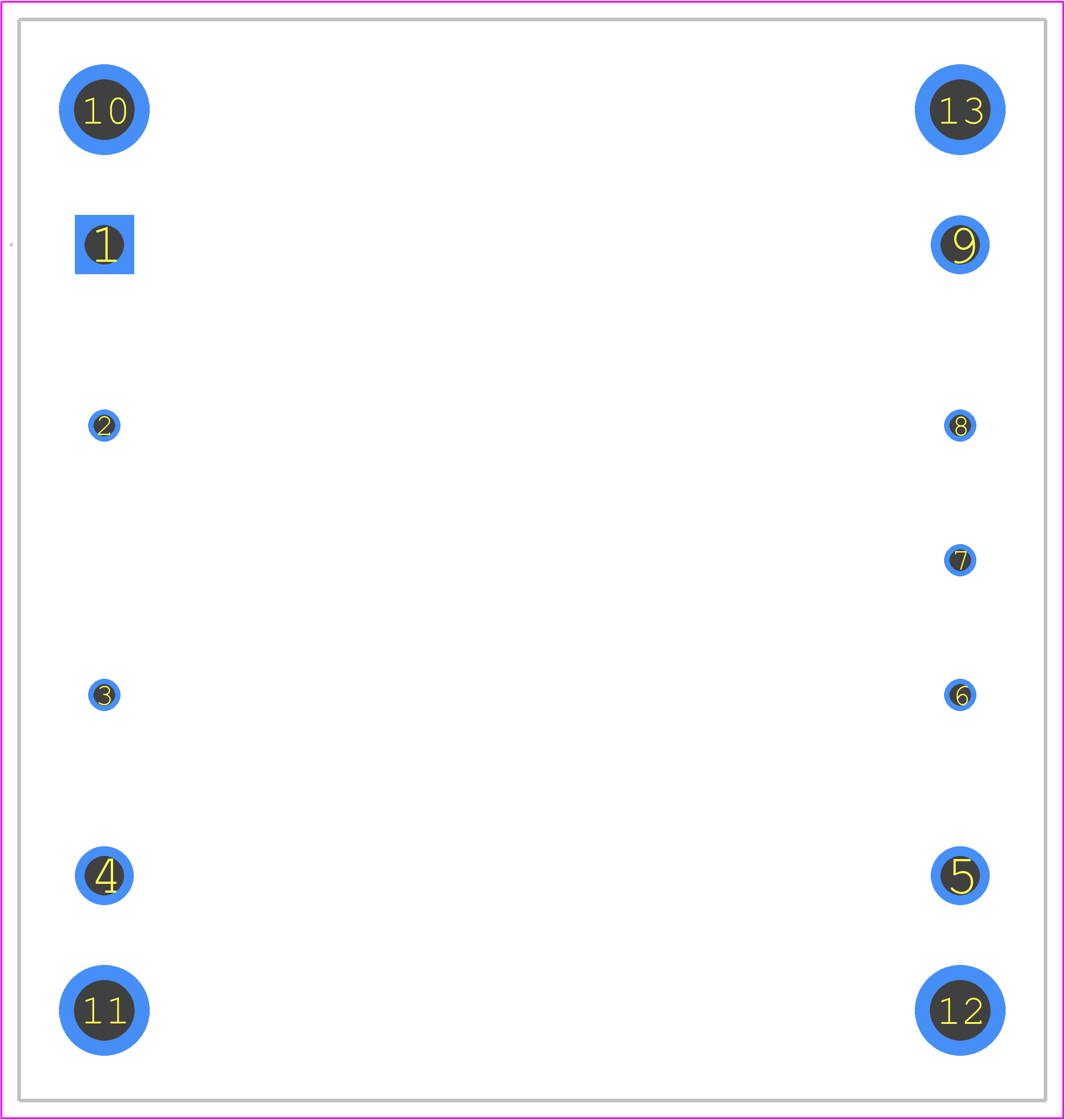

QSB20024S24 - XP POWER PCB footprint - Other - Other - QSB20024S24-4
click to zoom
3D Models
QSB20024S24 - XP POWER - 3D model - Other - QSB20024S24-4
click to zoom

QSB20024S24 Details

  • Manufacturer Part Number:

    QSB20024S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    199.2 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB20024S24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB20024S24 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application engineers for specific guidance.
  • The QSB20024S24 has a standard operating temperature range of -40°C to +85°C. However, it can be derated for high-temperature applications up to +100°C with reduced output power. Consult with XP Power for specific guidance on high-temperature operation.
  • The recommended input fuse rating for the QSB20024S24 is 2A to 5A, depending on the input voltage and system requirements. It's recommended to consult with XP Power's application engineers for specific guidance on fuse selection.
  • Yes, the QSB20024S24 can be paralleled for higher output power, but it requires careful consideration of the system design and thermal management. Consult with XP Power's application engineers for specific guidance on paralleling multiple units.
  • The MTBF rating for the QSB20024S24 is typically in the range of 1 million to 2 million hours, depending on the operating conditions and environment. Consult with XP Power for specific MTBF data and reliability information.
