QSB40024S24 - XP POWER

Description: Isolated DC/DC Converters DC-DC CONVERTER 400W

Download QSB40024S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

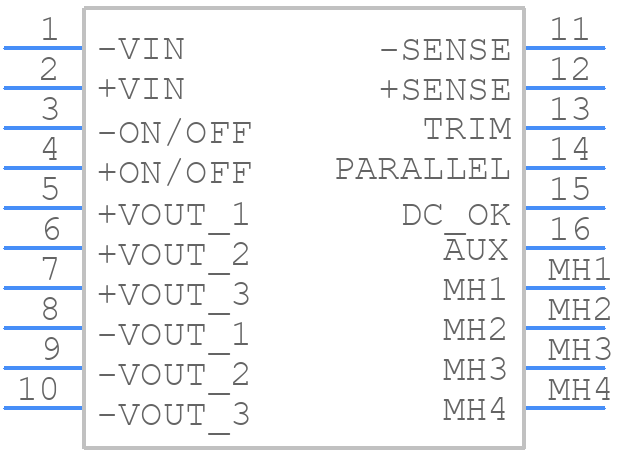

QSB40024S24 - XP POWER - PCB symbol
click to zoom
PCB Footprints

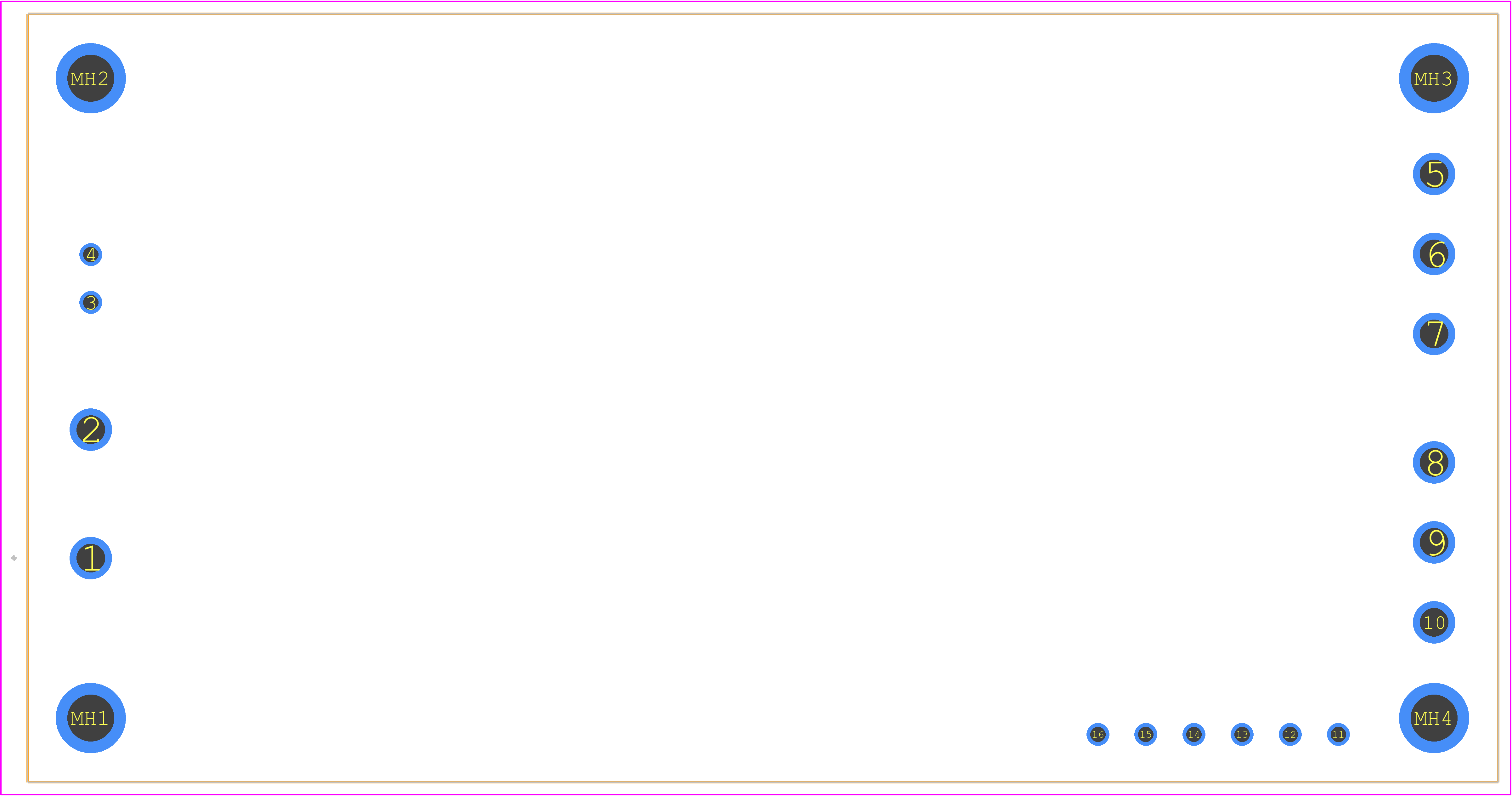

QSB40024S24 - XP POWER PCB footprint - Other - Other - QSB40024S24
click to zoom
3D Models
QSB40024S24 - XP POWER - 3D model - Other - QSB40024S24
click to zoom

QSB40024S24 Details

  • Manufacturer Part Number:

    QSB40024S24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-06-24

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

QSB40024S24 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the QSB40024S24 is -40°C to +100°C, with a derating of 2.5% per °C above 80°C.
  • Yes, the QSB40024S24 is designed to operate in humid environments and meets the IEC 60068-2-30 standard for humidity testing.
  • The QSB40024S24 requires a minimum load of 10% of the maximum rated output current to maintain regulation and ensure reliable operation.
  • Yes, the QSB40024S24 can be paralleled for higher power applications, but it is recommended to consult with XP Power's application engineers to ensure proper configuration and thermal management.
  • The MTBF rating for the QSB40024S24 is 1,500,000 hours at 25°C, calculated according to MIL-HDBK-217F.
