QSB7524S12 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC CONVERTER 75W

Download QSB7524S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

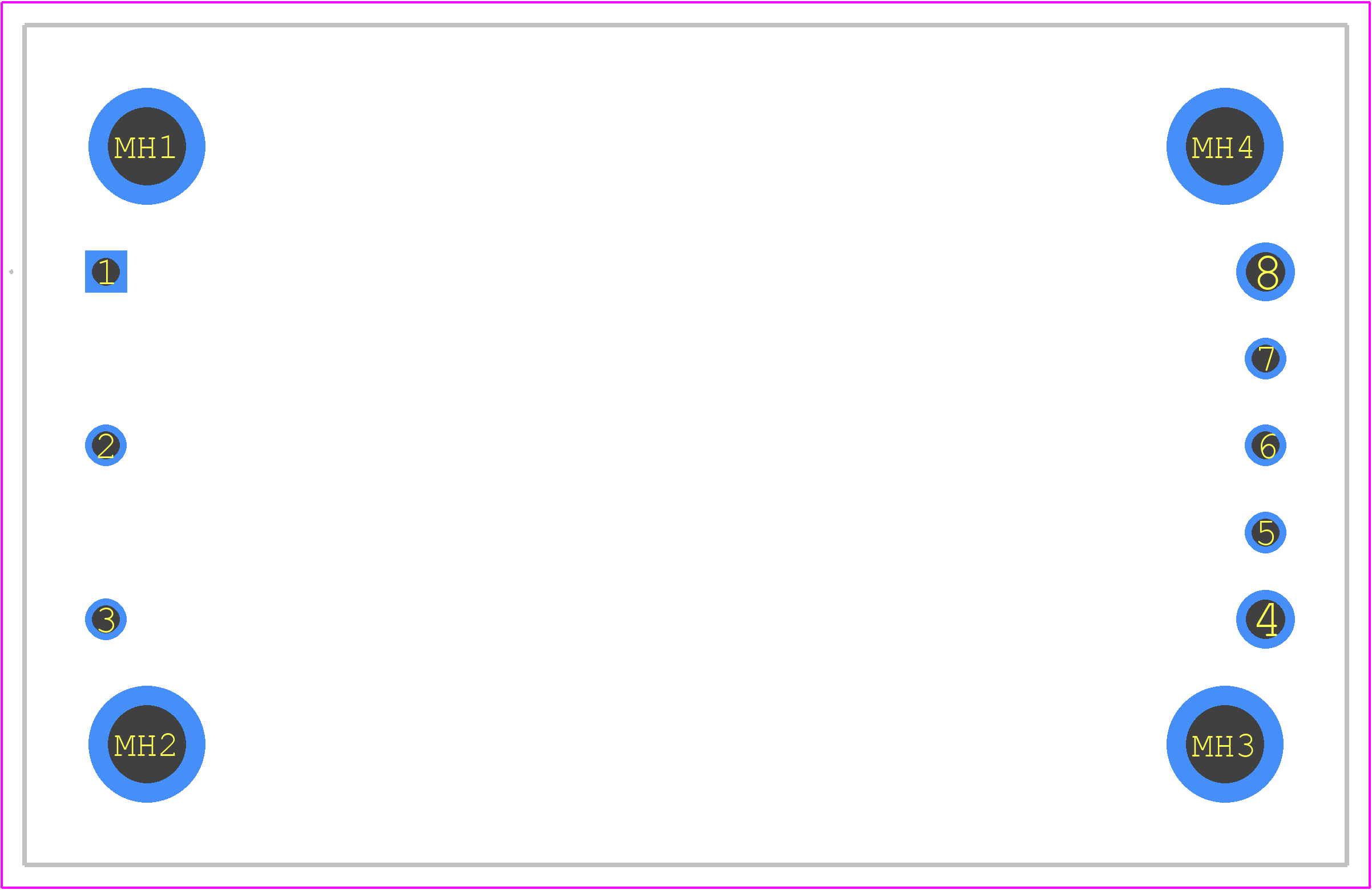

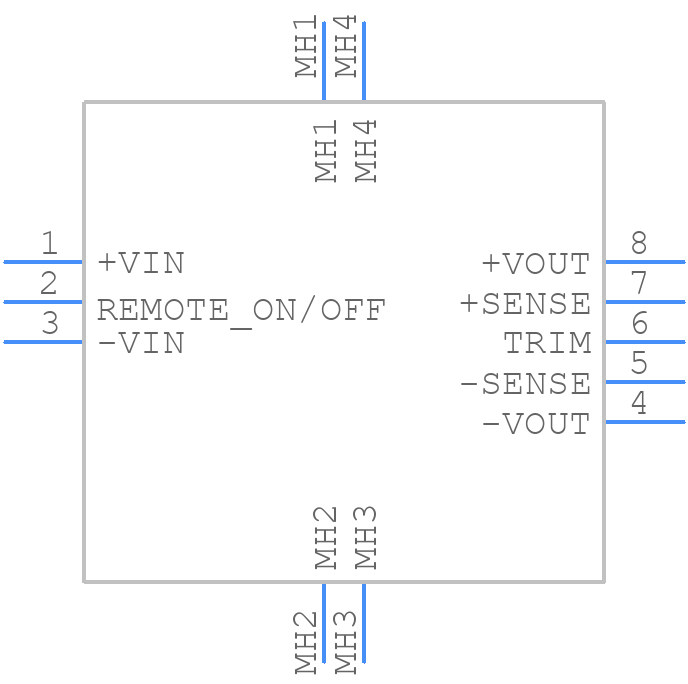

QSB7524S12 - XP POWER PCB footprint - Other - Other - QSB7524S12-1
click to zoom
3D Models
QSB7524S12 - XP POWER  - 3D model - Other - QSB7524S12-1
click to zoom

QSB7524S12 Details

  • Manufacturer Part Number:

    QSB7524S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    57.9 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    12.95 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    75 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.8 mm

QSB7524S12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB7524S12 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The QSB7524S12 is rated for operation up to 80°C ambient temperature. However, derating is required for temperatures above 60°C. Consult the datasheet for derating curves.
  • The QSB7524S12 meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult with XP Power or a certified test house for customized certification.
  • A well-designed PCB layout with adequate thermal management is crucial for the QSB7524S12. Ensure good airflow, use thermal vias, and follow XP Power's recommended layout guidelines to minimize thermal resistance.
  • Yes, multiple QSB7524S12 modules can be paralleled for higher power. However, ensure that the modules are synchronized and that the total output current does not exceed the maximum rating. Consult XP Power for guidance on paralleling modules.
