The QSB7524S15 can drive up to 10,000 μF of capacitive load, but it's recommended to derate the output voltage and current to ensure stable operation.
The QSB7524S15 meets various safety certifications such as UL, cUL, and CE. Ensure that your application meets the required safety standards by following the guidelines outlined in the datasheet and XP Power's safety certification documents.
Follow XP Power's recommended layout and thermal management guidelines to ensure optimal performance and reliability. This includes keeping the device away from heat sources, using a heat sink if necessary, and ensuring good airflow around the device.
Yes, the QSB7524S15 is designed to operate in high-vibration environments. However, it's recommended to follow XP Power's guidelines for vibration testing and ensure that the device is properly secured to the PCB to prevent damage.
Follow XP Power's troubleshooting guidelines, which include checking the input voltage, output voltage, and current, as well as verifying the device's thermal performance. Consult the datasheet and XP Power's application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QSB7524S15 Overview

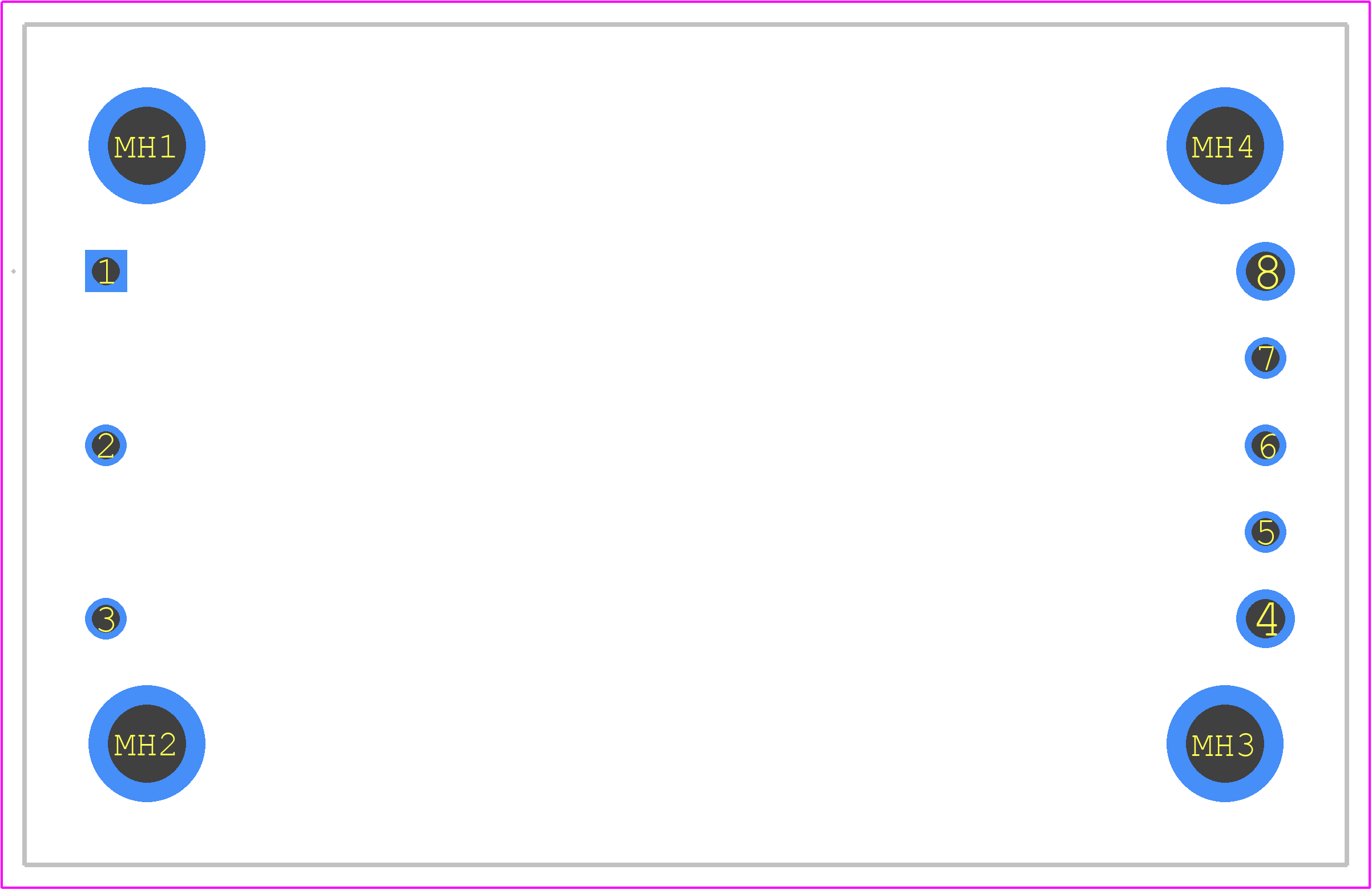

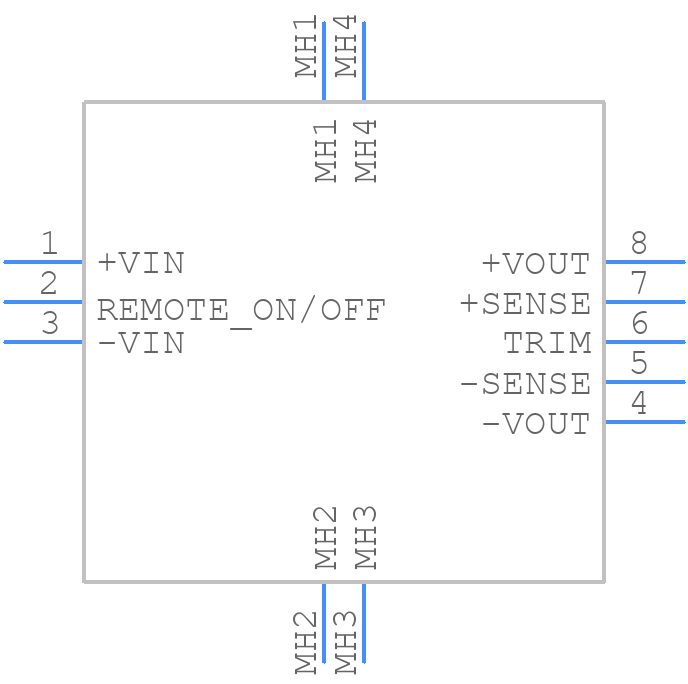

Use the download button to access the QSB7524S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSB75,
or try a keyword search, such as Power Supply Modules
