QSE-014-01-H-D-DP-A - SAMTEC

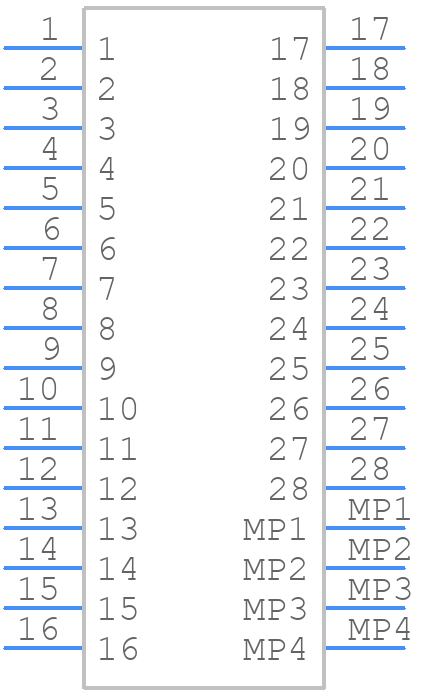

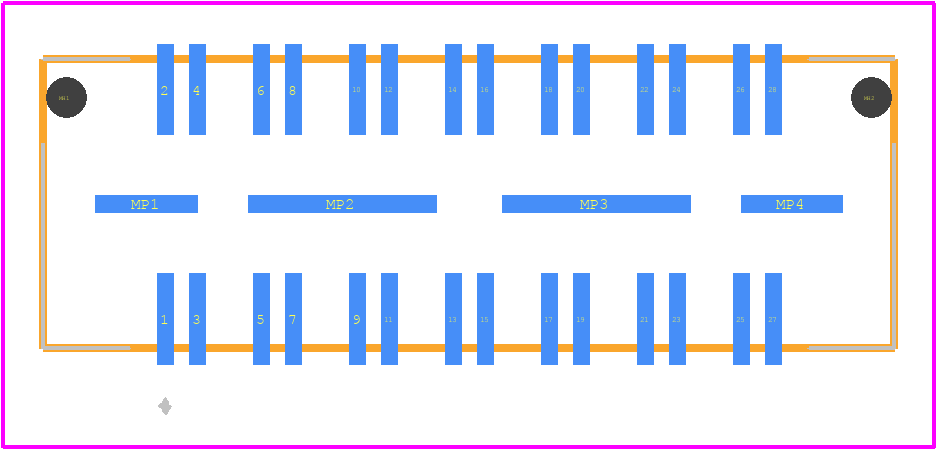

QSE-014-01-H-D-DP-A Details

• Manufacturer Part Number:

  QSE-014-01-H-D-DP-A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Costa Rica

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  2 Weeks, 3 Days

• Manufacturer:

  Samtec Inc

• YTEOL:

  9

• Board Mounting Option:

  LOCATING POSTS

• Body Breadth:

  0.235 inch

• Body Depth:

  0.128 inch

• Body Length:

  0.838 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  675VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.031 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2 A

• Reference Standard:

  CSA; UL

• Terminal Pitch:

  0.7874 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  28
