QSH-060-01-L-D-DP-A - SAMTEC

Description: Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Socket Strip

Download QSH-060-01-L-D-DP-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

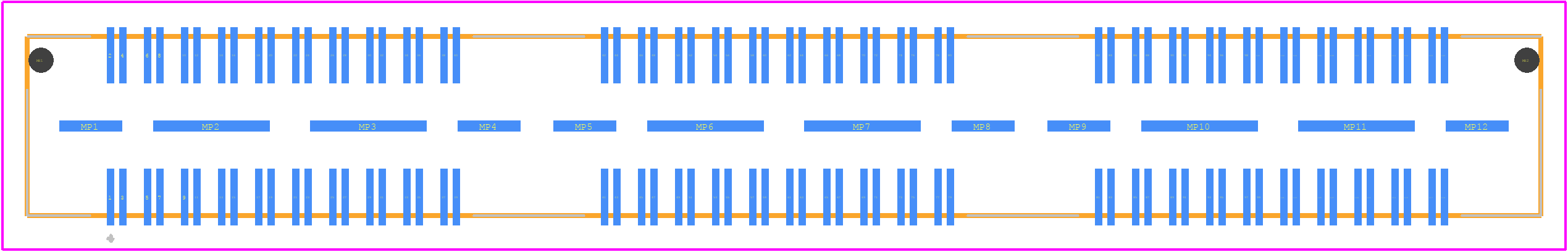

QSH-060-01-L-D-DP-A - SAMTEC PCB footprint - Other - Other - QSH-060-01-L-D-DP-A-1
click to zoom
3D Models
QSH-060-01-L-D-DP-A - SAMTEC  - 3D model - Other - QSH-060-01-L-D-DP-A-1
click to zoom

QSH-060-01-L-D-DP-A Details

  • Manufacturer Part Number:

    QSH-060-01-L-D-DP-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Direct Group:

    CH30050402197YY0200200160104028YY03YY0608YY02

  • Similar Group:

    CH30050402197YY0200200160104028YY03YY06

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Additional Feature:

    ELP

  • Body Breadth:

    0.285 inch

  • Body Depth:

    0.12 inch

  • Body Length:

    2.413 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.02 inch

  • Mating Contact Row Spacing:

    0.15 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.334 mm

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    CSA; UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    120

QSH-060-01-L-D-DP-A Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws that hold the connector in place.
  • Yes, the QSH-060-01-L-D-DP-A is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the QSH-060-01-L-D-DP-A is -55°C to 125°C (-65°F to 257°F).
  • Yes, the QSH-060-01-L-D-DP-A is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The mating cycle life for the QSH-060-01-L-D-DP-A is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
