QSS-050-01-C-D-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

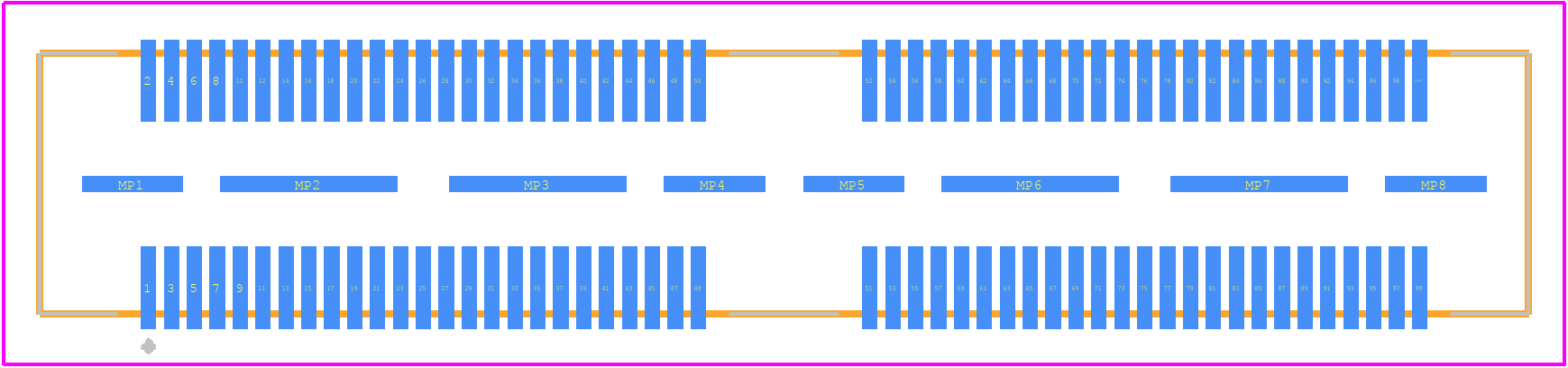

QSS-050-01-C-D-K - SAMTEC PCB footprint - Other - Other - QSS-050-01-C-D-K-3

click to zoom

3D Models

QSS-050-01-C-D-K - SAMTEC - 3D model - Other - QSS-050-01-C-D-K-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QSS-050-01-C-D-K
Part Number QSS-050-01-C-D-K
Manufacturer SAMTEC
Pin Count 108
Part Category Connector
Package Category Other
Footprint Name Other - QSS-050-01-C-D-K-3
Released Date May 8, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

QSS-050-01-C-D-K Details

Manufacturer Part Number:
QSS-050-01-C-D-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.285 inch
Body Depth:
0.143 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
CENTRONIC
Dielectric Withstanding Voltage:
825VAC V
Filter Feature:
NO
Insulation Resistance:
15000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.025 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Plating Thickness:
50u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1.3 A
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100

QSS-050-01-C-D-K Frequently Asked Questions (FAQs)

The recommended mating sequence for QSS-050-01-C-D-K is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the QSS-050-01-C-D-K is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
The QSS-050-01-C-D-K has an operating temperature range of -55°C to 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
Yes, the QSS-050-01-C-D-K is designed for automated assembly processes, including pick-and-place and robotic assembly. However, it's essential to consult with Samtec Inc or a qualified assembly partner for specific guidance on assembly procedures.
The typical lead time for delivery of QSS-050-01-C-D-K connectors can vary depending on the quantity, region, and availability. It's best to consult with Samtec Inc or an authorized distributor for the most up-to-date lead time information.

Trust Checks

Expert Contribution

System Verified

Community Approved

QSS-050-01-C-D-K Overview

Use the download button to access the QSS-050-01-C-D-K schematic symbol, PCB footprint, and 3D model.
