QSS-075-01-L-D-A-GP footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

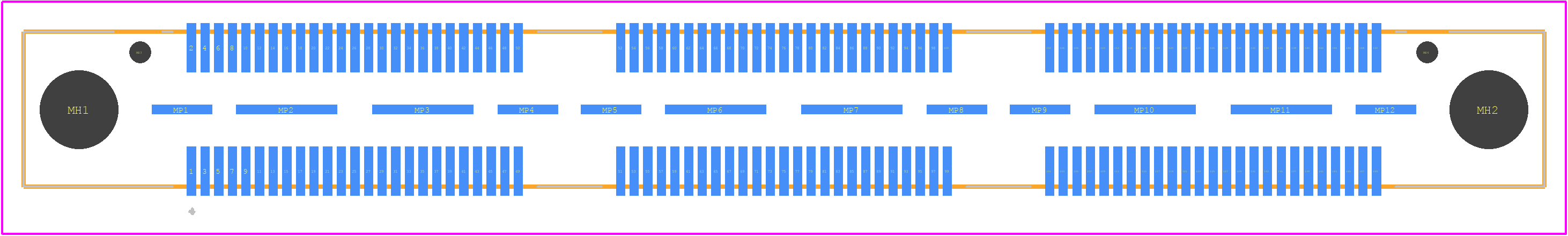

QSS-075-01-L-D-A-GP - SAMTEC PCB footprint - Other - Other - QSS-075-01-L-D-A-GP-1

click to zoom

3D Models

QSS-075-01-L-D-A-GP - SAMTEC - 3D model - Other - QSS-075-01-L-D-A-GP-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QSS-075-01-L-D-A-GP
Part Number QSS-075-01-L-D-A-GP
Manufacturer SAMTEC
Pin Count 162
Part Category Connector
Package Category Other
Footprint Name Other - QSS-075-01-L-D-A-GP-1
Released Date May 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

QSS-075-01-L-D-A-GP Details

Manufacturer Part Number:
QSS-075-01-L-D-A-GP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 4 Days
Manufacturer:
Samtec Inc
YTEOL:
9
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
150

QSS-075-01-L-D-A-GP Frequently Asked Questions (FAQs)

The recommended torque for the screws on the QSS-075-01-L-D-A-GP connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the QSS-075-01-L-D-A-GP connector is compatible with lead-free soldering processes, with a recommended soldering temperature range of 260°C to 270°C.
The maximum operating temperature range for the QSS-075-01-L-D-A-GP connector is -55°C to 125°C, according to Samtec's datasheet.
Yes, the QSS-075-01-L-D-A-GP connector is designed to withstand high-vibration applications, with a tested vibration range of 10-2000 Hz, 20 G peak acceleration.
Yes, the QSS-075-01-L-D-A-GP connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on hazardous substances.

Trust Checks

Expert Contribution

System Verified

Community Approved

QSS-075-01-L-D-A-GP Overview

Use the download button to access the QSS-075-01-L-D-A-GP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like QSS-0, or try a keyword search, such as Headers and Edge Type Connectors
